51 47 030 Removing and installing/replacing rear left or right entrance cover strip (inside)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Carefully pry off entrance cover trim from front to back (1) with special tool 00 9 325 and remove by pulling forward.

Installation:

Correctly hook entrance cover strip (1) into wheel arch-luggage compartment trim panel with retaining tab (2).

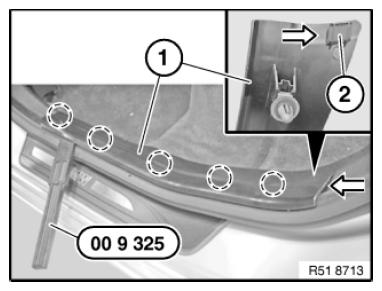

Fig 1: Prying Off Entrance Cover Trim Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty clips (1).

Replacement

Modify clips (1).

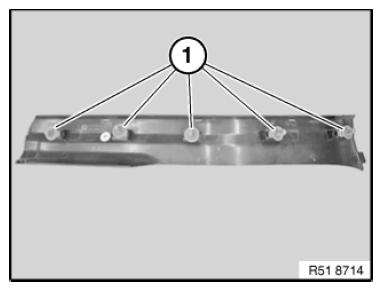

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
