23 21 805 Replacing Bearings On All Transmission Shafts (S5D 260Z / 310Z / 320Z): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 500
23 1 220
23 1 260
23 1 280
23 1 300
23 1 440
23 1 470
23 2 310
33 4 020

Remove drive and output shafts. Refer to 23 21 502 REMOVING AND INSTALLING COMPLETE DRIVE AND OUTPUT SHAFTS (S5D 260Z / 310Z / 320Z) .

Rear Case Section:

Release screws.

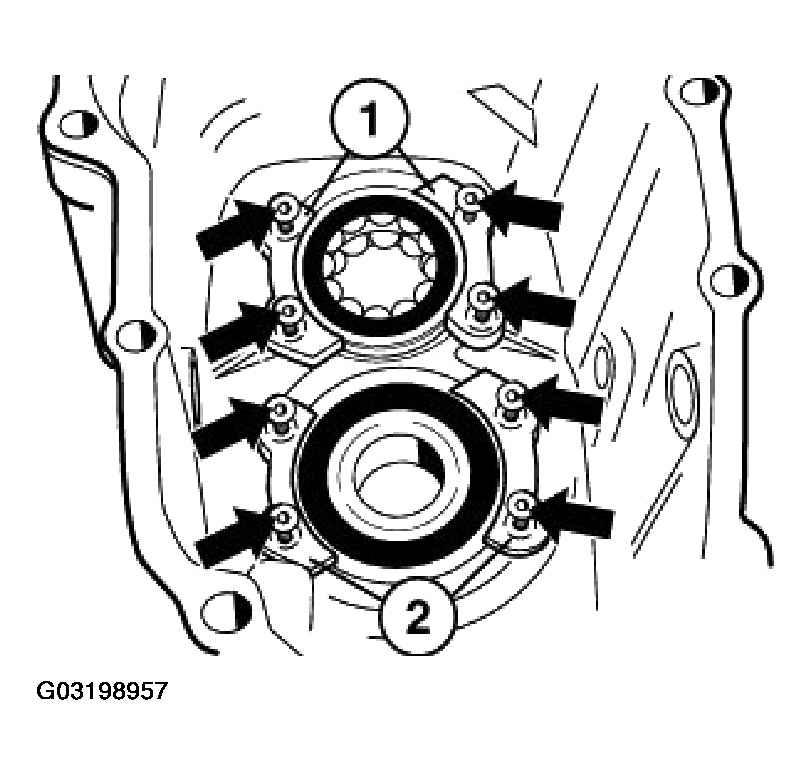

Remove retaining plates (1 and 2).

Fig 1: Removing Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

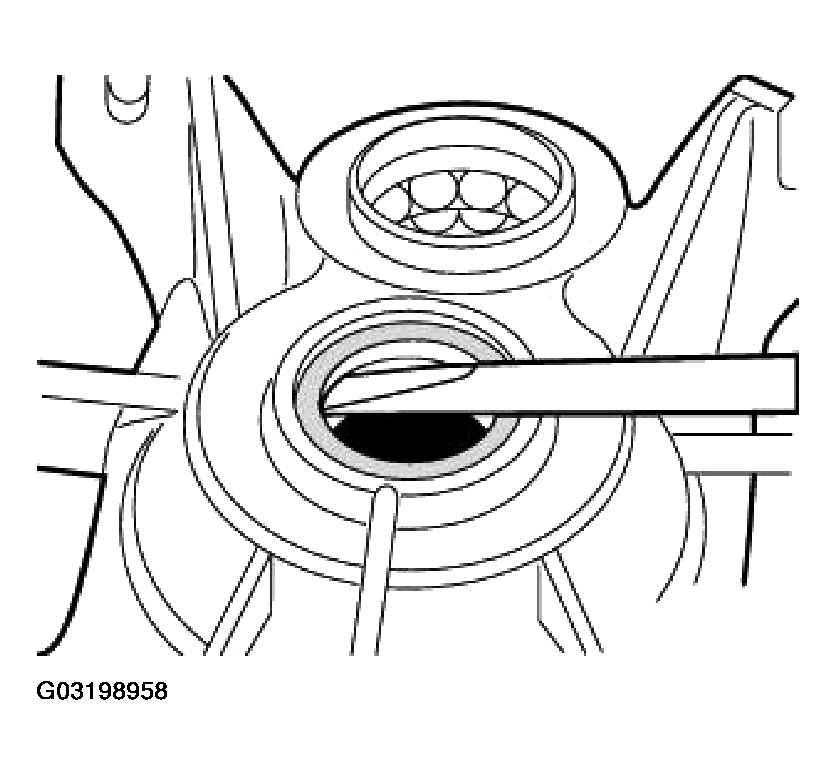

Lever out radial seal for output flange.

Fig 2: Removing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.
