23 21 805 Replacing Bearings On All Transmission Shafts (S5D 260Z / 310Z / 320Z): Installation:

Replace radial seal.

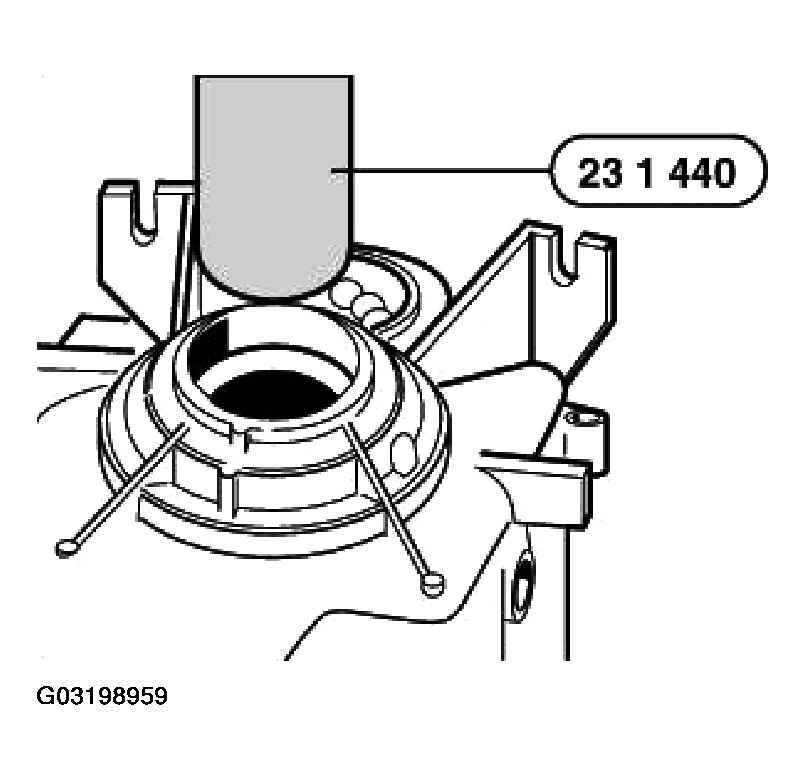

Drive out ball bearing for output shaft with special tool 23 1 440 towards inside.

Fig 1: Removing Ball Bearing For Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Countershaft:

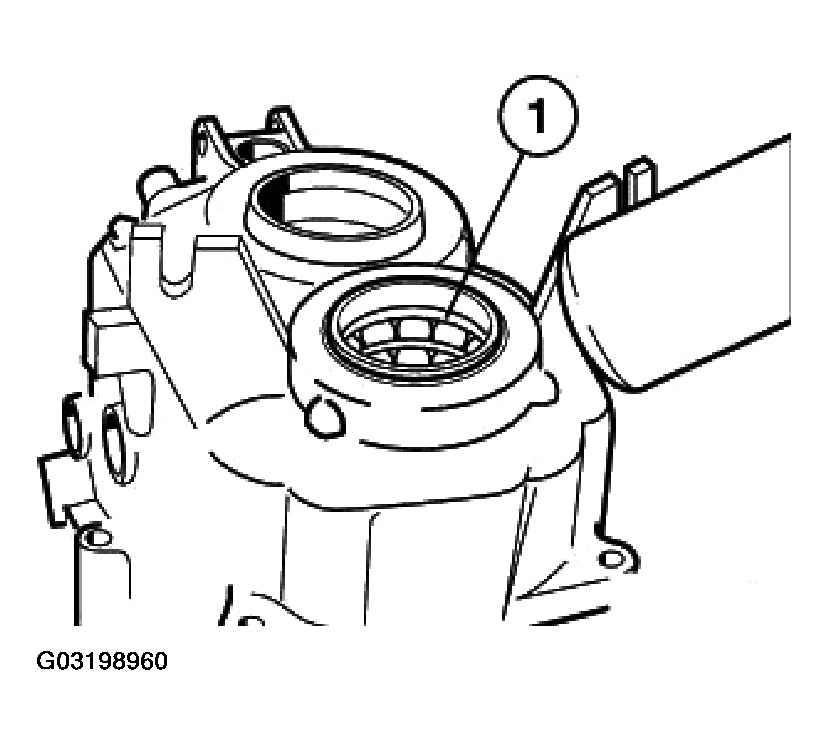

Heat housing in area of ball bearing to approx. 80°C (hot-air blower).

Withdraw ball bearing (1) towards inside.

Fig 2: Withdrawing Ball Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Clean dirt from rear housing section.

Heat rear section of housing uniformly in area of ball bearing to approx. 80°C (hot-air blower).

Insert ball bearings for output shaft/countershaft.

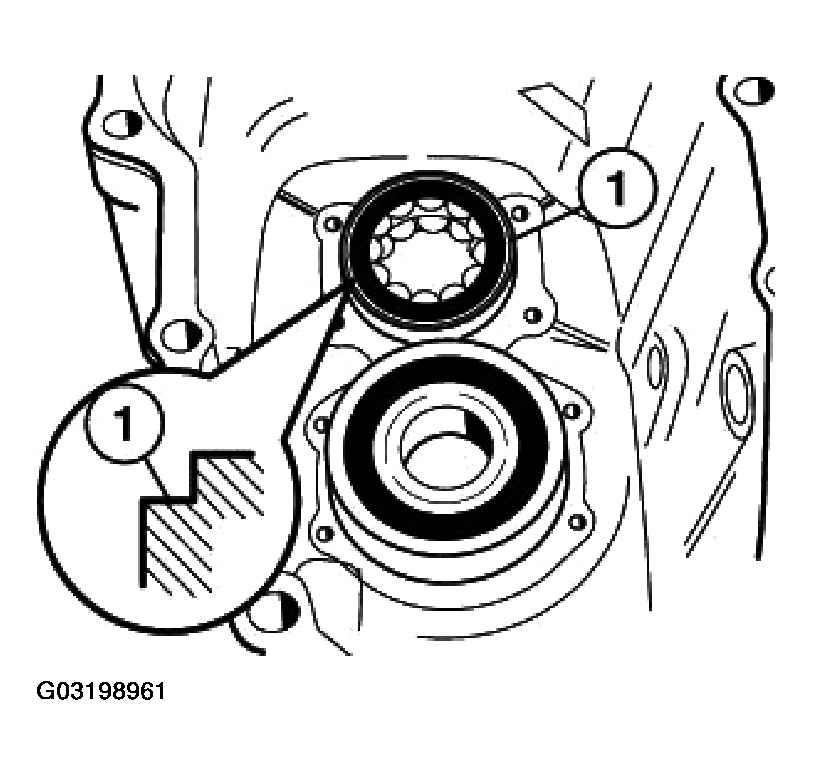

Insert ball bearing (1) for countershaft with stepped side (1) towards inside.

Fig 3: Inserting Ball Bearing For Countershaft

Courtesy of BMW OF NORTH AMERICA, INC.

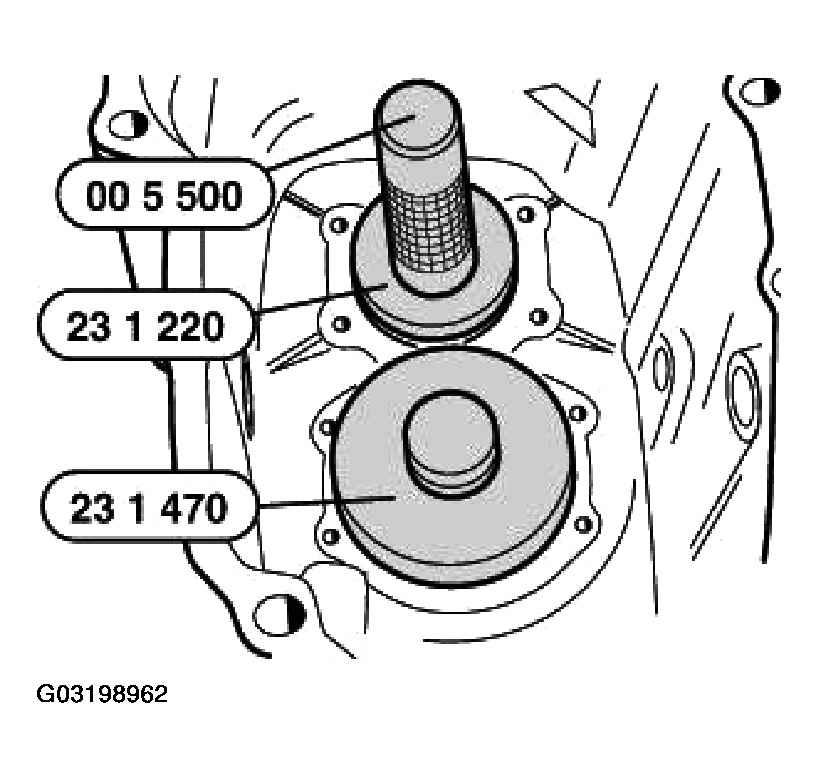

Drive in ball bearing until it is firmly seated:

• Drive in output shaft with special tools 23 1 470 and 00 5 500.
• Drive in countershaft with special tools 23 1 220 and 00 5 500.
  Fig 4: Installing Output Shaft And Countershaft

  Courtesy of BMW OF NORTH AMERICA, INC.

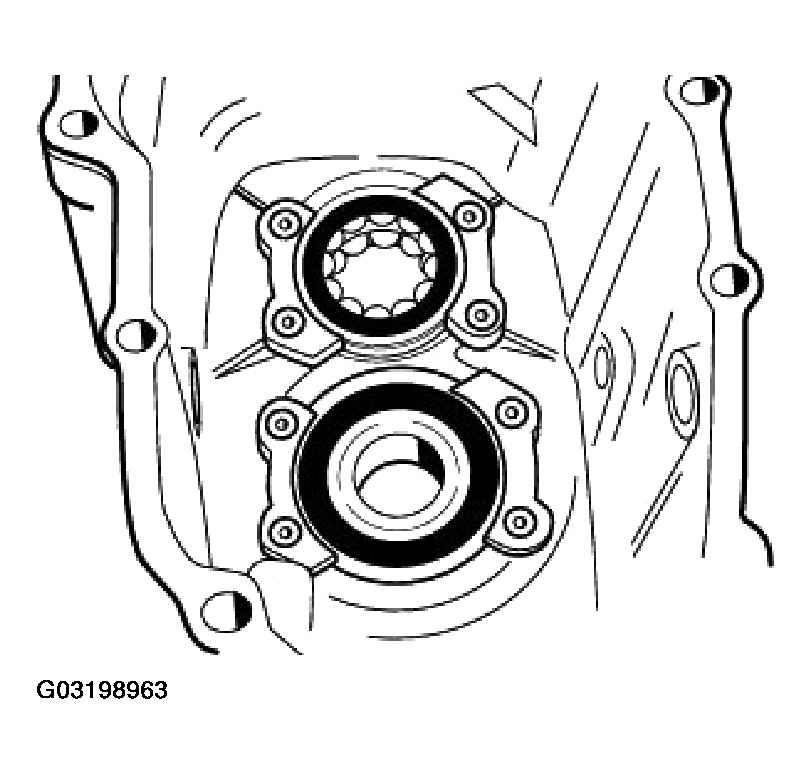

Install retaining plates.

Fig 5: Installing Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Install screws with screw retaining compound and tighten down.

Tightening torque, 23 11 17AZ. Refer to 23 11 CASE AND COVER .

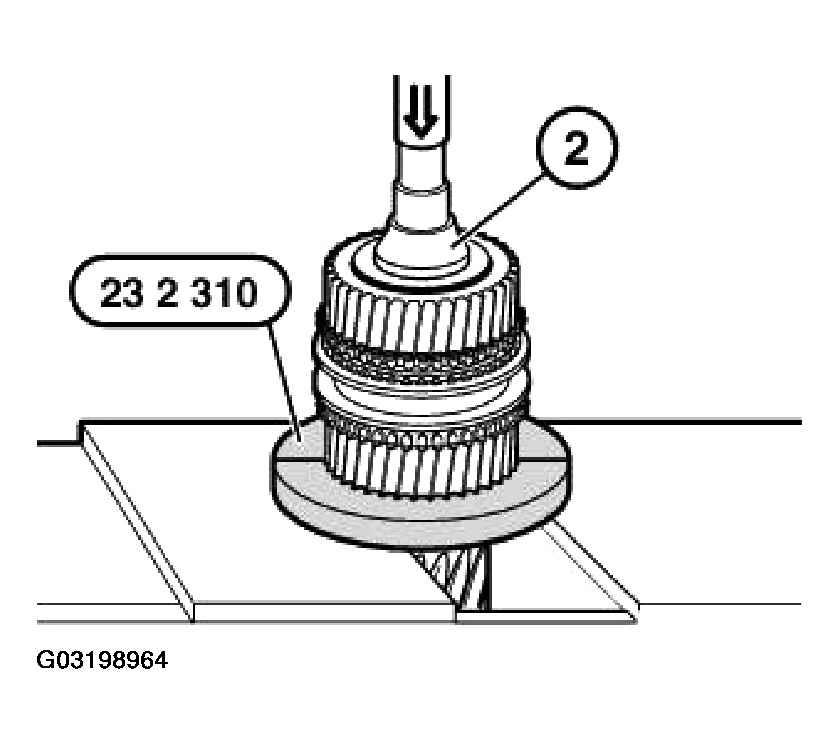

For replacement of bearing inner race (2), 3rd/4th gear wheel must be pressed off with special tool 23 2 310.

Fig 6: Replacing Bearing Inner Race

Courtesy of BMW OF NORTH AMERICA, INC.

For removal, refer to 23 23 507 Disassembling and assembling all synchronizing mechanisms (S5D 260Z / 310Z / 320Z)  Replacing synchronizing mechanism, 3rd/4th gear.

Bearing in front housing section.

Drive shaft: release screws.

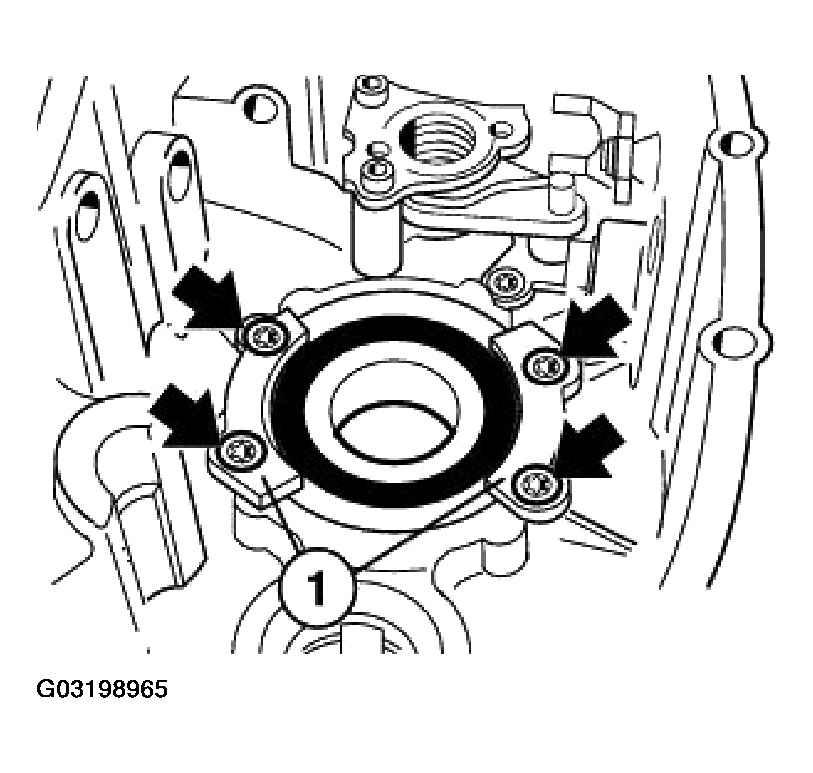

Remove retaining plates (1).

Fig 7: Removing Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Heat housing in area of ball bearing to approx. 80°C (hot-air blower).

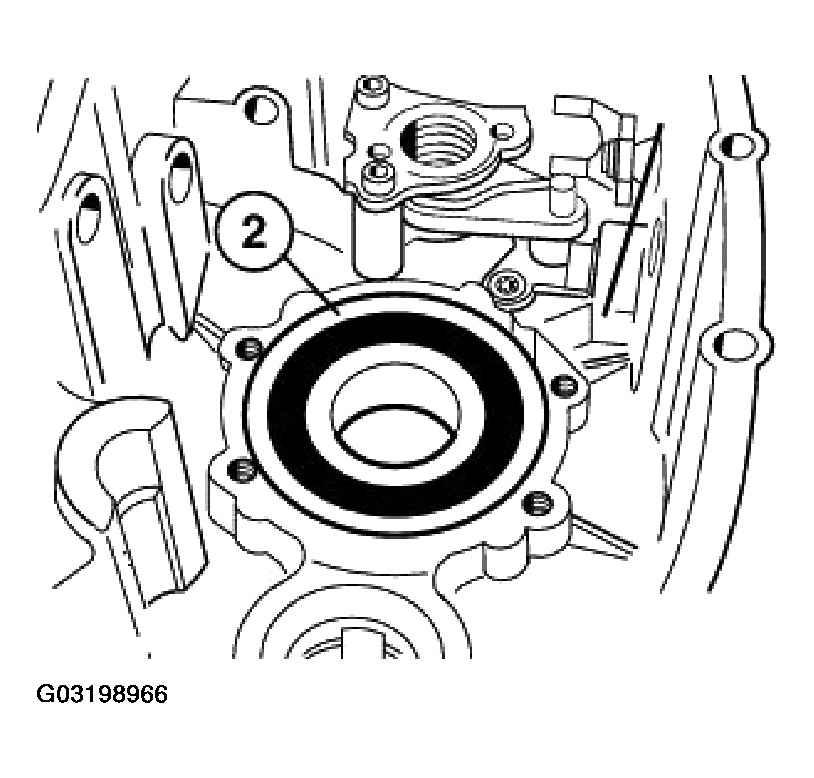

Withdraw ball bearing (2), if necessary drive out with special tool 23 1 440 from outside to inside.

Fig 8: Withdrawing Ball Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Heat housing in area of ball bearing to approx. 80°C (hot-air blower).

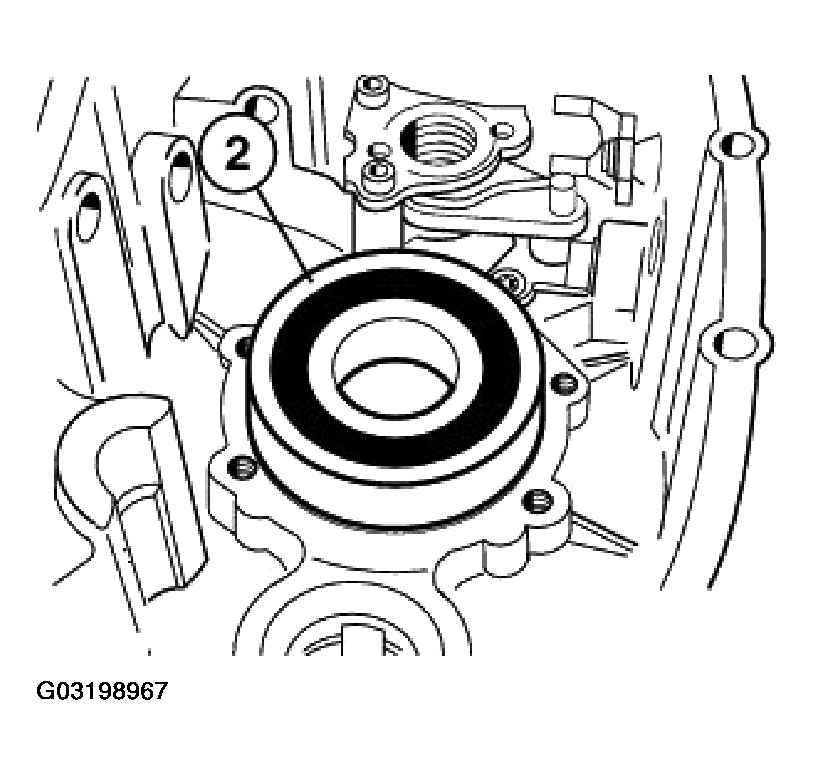

Install ball bearing (2), if necessary drive in with special tool 23 1 470 until firmly seated.

Fig 9: Installing Ball Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

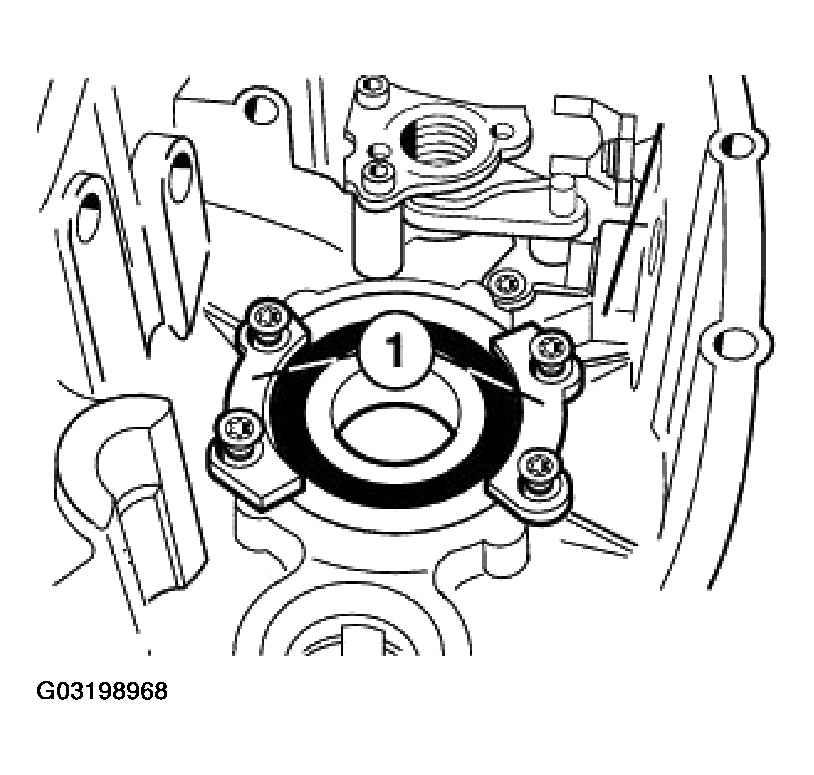

Install retaining plates (1).

Fig 10: Installing Retaining Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Install screws with screw retaining compound and tighten down.

Tightening torque, 23 11 17AZ. Refer to 23 11 CASE AND COVER .

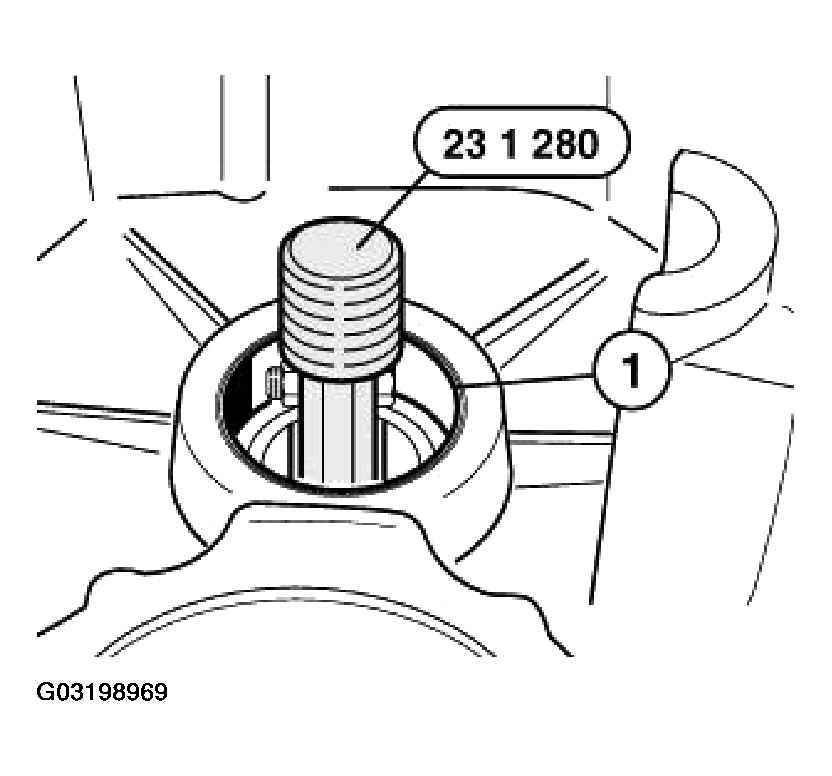

Countershaft: install special tool 23 1 280 in bearing shell (1) for roller bearing.

Fig 11: Installing Special Tool In Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

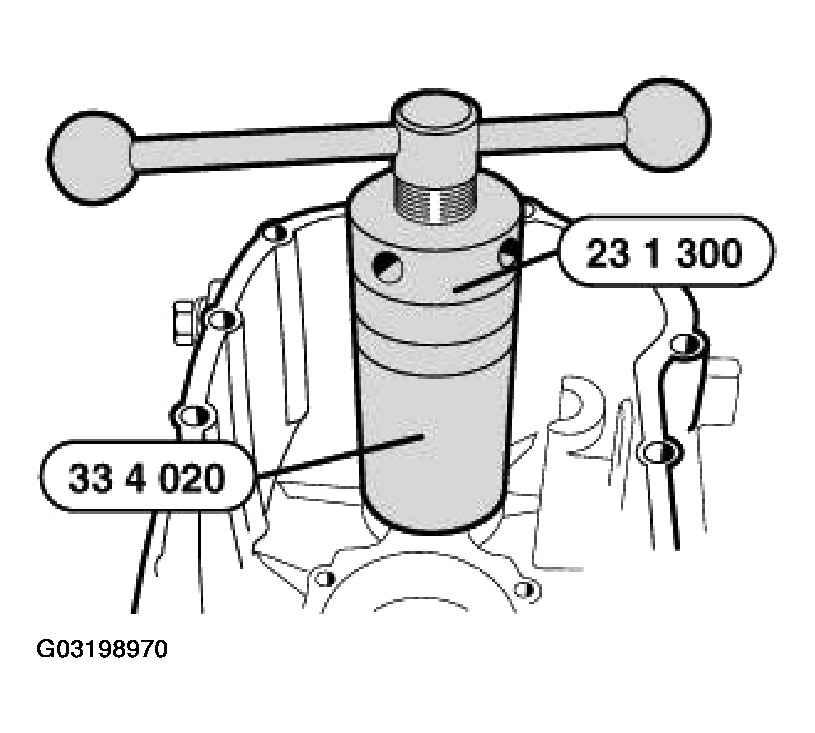

Fit special tool 33 4 020.

Screw on special tool 23 1 300.

Withdraw bearing shell.

Fig 12: Removing Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

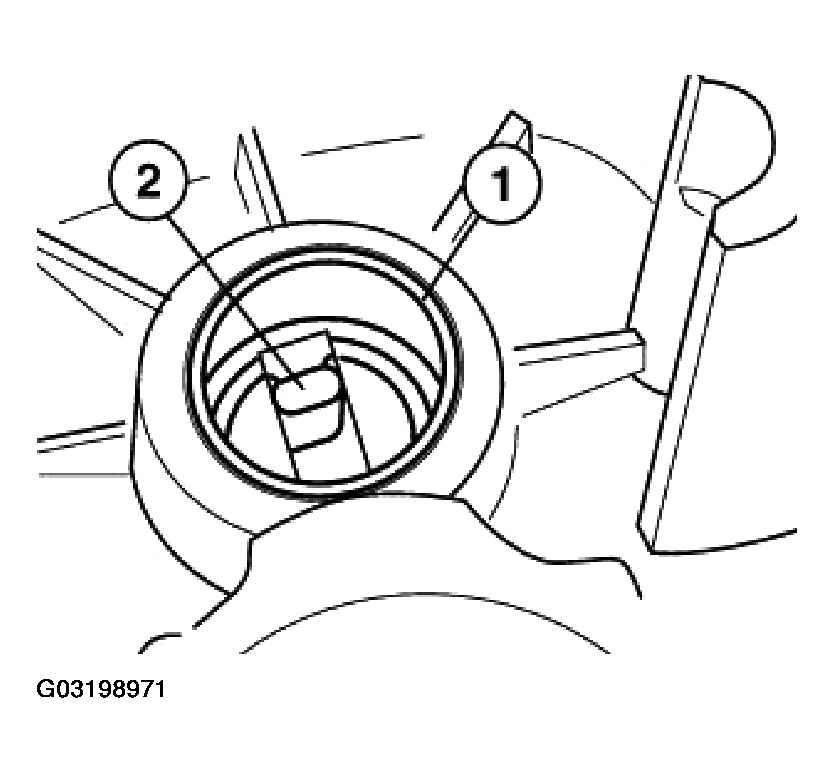

Install bearing shell (1) in such a way that slot in bearing shell is flush with knob (2) (turning lock) in housing.

Fig 1: Installing Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.

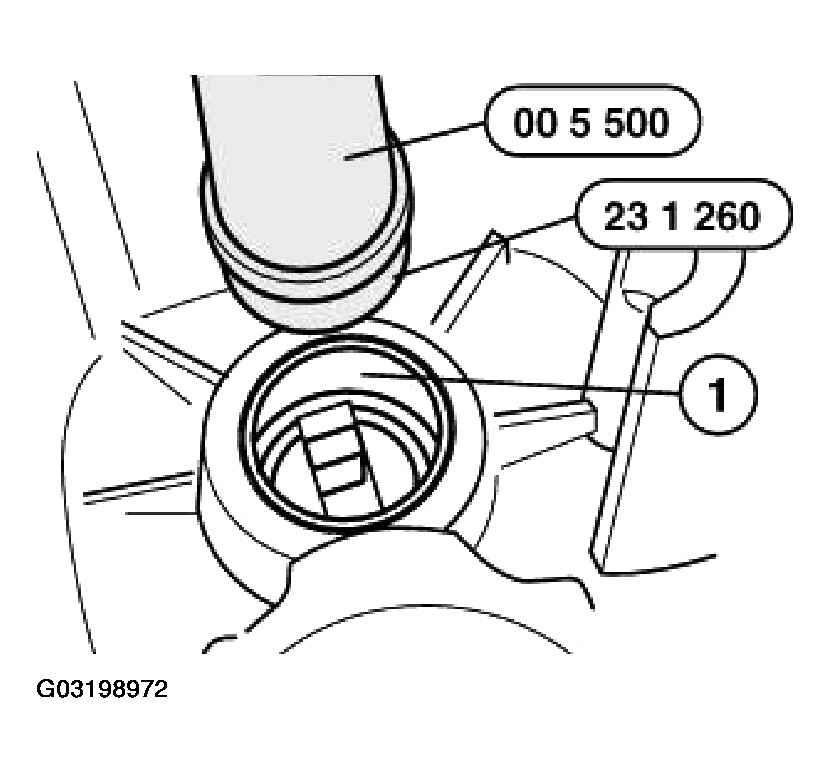

Drive in bearing shell (1) with special tool 23 1 260 and special tool 00 5 500.

Fig 2: Driving In Bearing Shell

Courtesy of BMW OF NORTH AMERICA, INC.
