36 10 713 Checking one road wheel on balancing machine for lateral and radial runout (wheel removed)

Special tools required:

• 36 1 030
• 36 1 031
• 36 1 032
• 36 1 033
• 36 1 034
• 36 1 035
• 36 1 036

Necessary preliminary tasks

• Remove WHEEL .

Mount wheel in balancing machine.

To avoid clamping errors, fit the wheel on the balancing machine in the same way as it is also fitted on the vehicle (valve position facing down).

Fig 1: Identifying Wheel On Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel centering element supplied with corresponding balancing machine.

1. Basic flange.
2. Wheel centering element.
3. Type flange.
4. Clamping nut.

Fig 2: Identifying Basic Flange, Wheel Centering Element, Type Flange And Clamping Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 36 1 030 for checking.

Special tool 36 1 030 consists of:

1. Base 36 1 031
2. Post with clamp 36 1 032
3. Holder with clamp 36 1 033
4. Clamp 36 1 034
5. Measuring roll 36 1 035
6. Dial gauge 36 1 036

Fig 3: Identifying Special Tool (36 1 030) Components

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire tread surface.

Turn wheel by hand and measure max. radial tire runout  . See WHEELS TWO-PART ALLOY WHEELS , WHEELS ONE-PART ALLOY WHEELS or WHEELS STEEL AND ALUMINUM STRIP WHEELS .

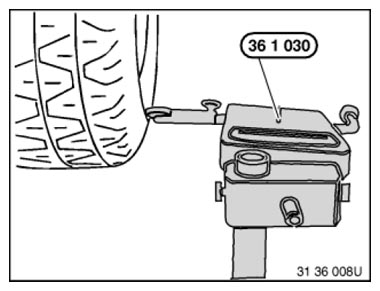

Fig 4: Measuring Max. Radial Tire Runout Using Special Tool (36 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire sidewall.

Turn wheel by hand and measure max. lateral tire runout  . See WHEELS TWO-PART ALLOY WHEELS , WHEELS ONE-PART ALLOY WHEELS or WHEELS STEEL AND ALUMINUM STRIP WHEELS .

Never measure on tire inscription!

If necessary, check DISC WHEEL  (wheel rim) for radial and face runout.

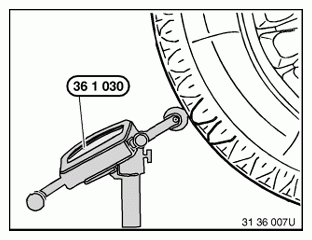

Fig 5: Measuring Max. Lateral Tire Runout Using Special Tool (36 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.
