11 65 712 Removing and installing/replacing electric changeover valve on exhaust turbocharger, left (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove left TURBOCHARGER .

Release screws (1).

Remove electric changeover valve.

Installation note:

Replace O-ring.

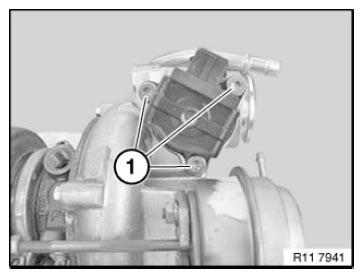

Fig 1: Identifying Electric Changeover Valve Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Follow diagnosis instruction.
