34 21 169 Removing and installing/renewing a brake anchor plate/brake guard plate at rear
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove PARKING BRAKE SHOES .
NOTE:

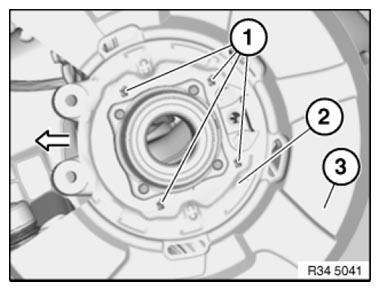

Picture shows wheel hub removed. Wheel hub does not have to be removed.
Release screws (1).
Installation note:
Replace screws.
Tightening torque 34 21 3AZ .
Remove retaining plate (2) in direction of arrow.
Feed out brake guard plate (3) over wheel hub.
