34 33 071 Replacing vacuum hose for brake booster (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake servo. This makes it easier to remove the vacuum hose.

Vacuum hose and non-return valve are welded together and are replaced together as a single unit.

Necessary preliminary tasks

Read and comply with General Information.
Remove partition wall, units compartment

Pull off partition wall seal upper part (1) in direction of arrow.

Remove non-return valve (2) from brake servo.

Installation note:

Check gasket for non-return valve and replace if necessary.

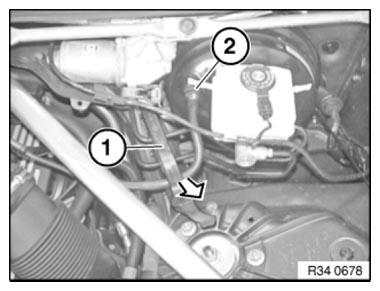

Fig 1: Removing Non-Return Valve From Brake Servo

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip vacuum line (1) from line clip (2).

Unlock snap fastener (3) and detach vacuum line.

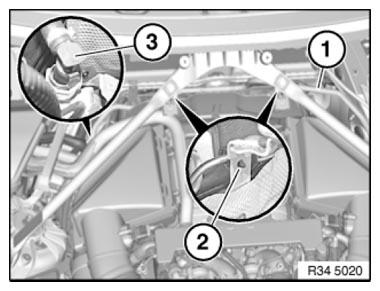

Fig 2: Identifying Snap Fastener, Vacuum Line And Line Clip

Courtesy of BMW OF NORTH AMERICA, INC.
