17 22 030 Removing and installing/replacing oil line for engine oil cooler (N55)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this work after engine has cooled down.

IMPORTANT: Wear protective gloves and safety goggles.

Recycling

Engine oil escapes when oil line is released.

Catch and dispose of emerging engine oil.

Observe country-specific waste disposal regulations.

Necessary preliminary work

Remove FAN COWL .
Remove front right WHEEL ARCH PANEL .

Release screw (1).

Tightening torque 17 22 4AZ.

Detach oil lines from oil filter housing.

Catch and dispose of emerging engine oil.

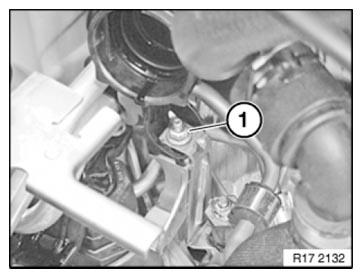

Fig 1: Identifying Engine Oil Line Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1).

Tightening torque 17 22 5AZ. .

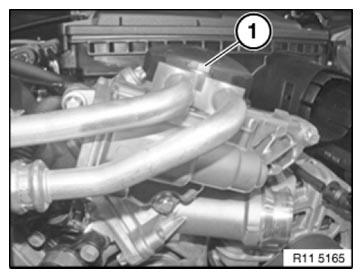

Fig 2: Identifying Engine Oil Line Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock oil lines (1) and detach from engine oil cooler flange.

Catch and dispose of emerging engine oil.

Release clamp (2).

Feed out engine oil line and remove.

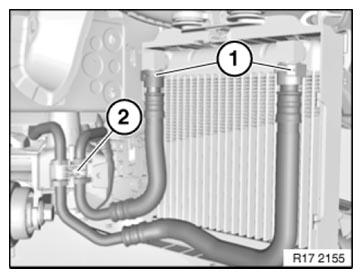

Fig 3: Identifying Engine Oil Lines And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings on engine oil lines.

Fig 4: Locating Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completion of work, check oil level. Top up engine oil, if necessary.
