17 21 500 Rinsing the transmission oil cooler with lines (automatic transmission) (GA8HP45Z, GA8HP70Z, GA8HP90Z)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Carry out the operations listed when:
Installing a new or replacement transmission.

Procedure

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Use quick-release coupling to connecting line 17 2 019 from oil dispenser unit.

Use quick-release coupling to drain line 17 2 018.

Hold and direct open end of drain line into a suitable collecting vessel.

Using oil dispenser unit, flush approx. 1 litre of transmission fluid (refer to BMW Service Operating Fluids) through oil lines and transmission oil cooler. See AUTOMATIC TRANSMISSION -- OPERATING FLUIDS .

Reposition quick-release couplings.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 litre of transmission fluid (refer to BMW Service Operating Fluids). See AUTOMATIC TRANSMISSION -- OPERATING FLUIDS .

Disconnect quick-release couplings.

Remove adapter.

Recycling

Never use flushing oil.

Dispose of flushing oil according to country-specific waste disposal regulations.

Press hydraulic lines (1) into adapters (2).

Slide clamping bracket (3) into guides and secure with screw (4).

Fig 1: Identifying Hydraulic Lines, Adapters, Clamping Bracket With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

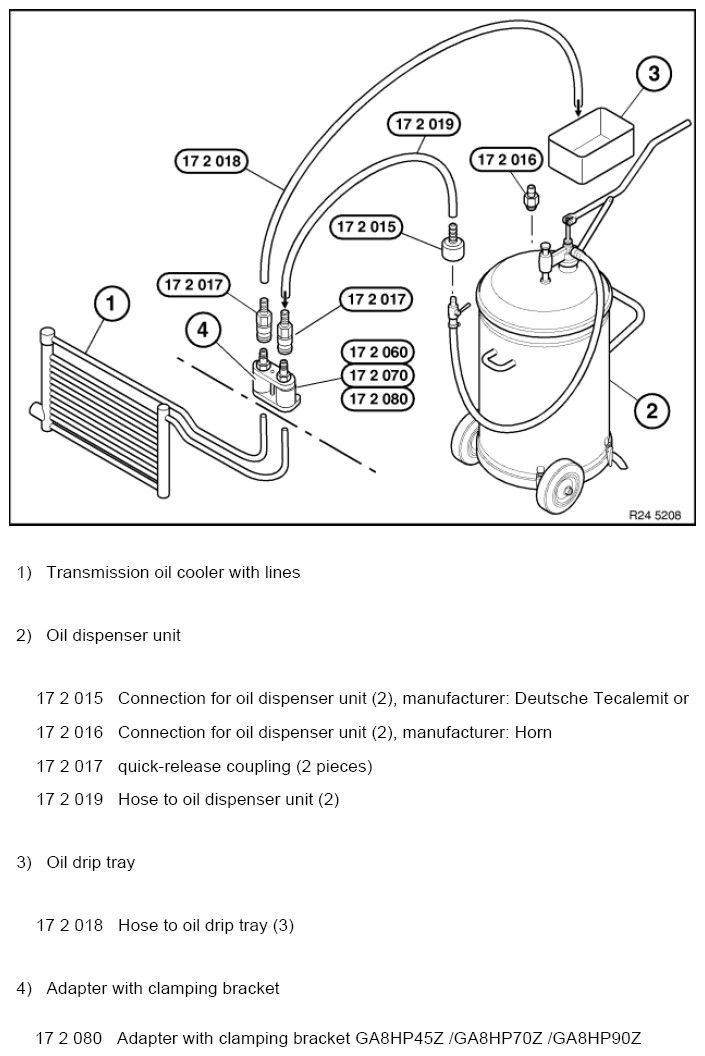

Arrangement of flushing device for transmissions GA8HP45Z, GA8HP70Z, GA8HP90Z

Fig 2: Layout Of Flushing Apparatus For Transmissions (GA6HP19Z, GA6HP26Z, GA6HP32Z)

Courtesy of BMW OF NORTH AMERICA, INC.
