Arrangement, flushing apparatus for transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

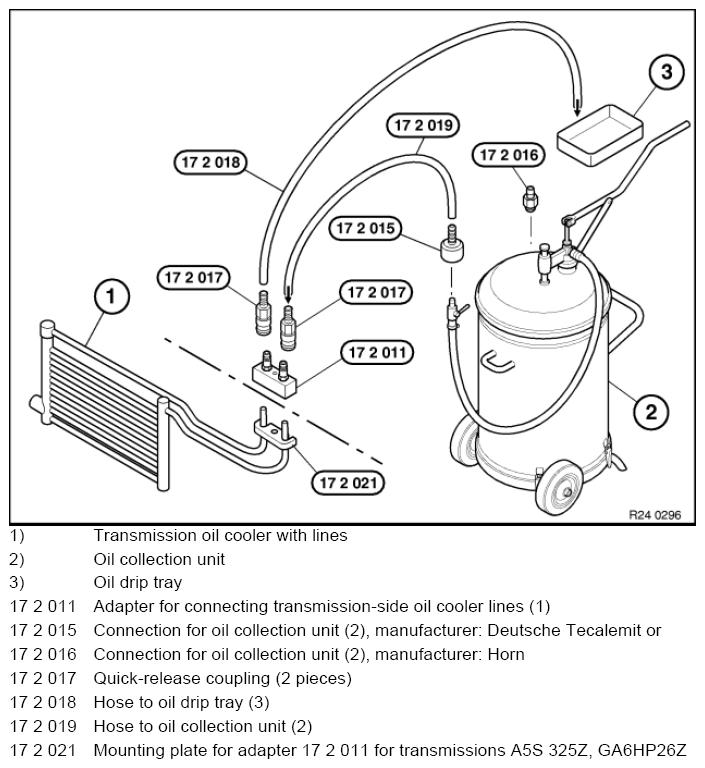

Fig 1: Layout Of Flushing Apparatus For Transmissions (A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z)
G08485058Courtesy of BMW OF NORTH AMERICA, INC.
