32 41 314 Replacing suction line for power steering (from fluid reservoir to connecting piece)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.

Recycling

Catch and dispose of hydraulic fluid in a suitable expansion tank.

Necessary preliminary work

Draw off and dispose of hydraulic fluid from oil reservoir.
Remove OIL RESERVOIR from body.
Remove raw-air supply on left. See 13..... REMOVING INTAKE DUCT (N63)

Unfasten hose clamp (1).

Disconnect intake pipe (2) from oil reservoir.

Installation note:

Marks on oil reservoir and intake pipe must match up.

Replace hose clamp.

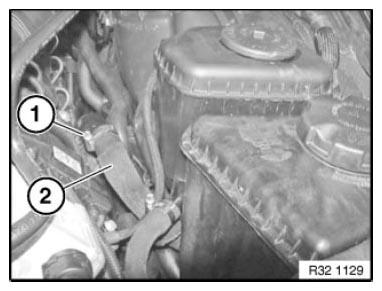

Fig 1: Identifying Oil Reservoir Intake Pipe With Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clamp (1).

Remove intake pipe (2).

Installation note:

Replace hose clamp.

Make sure intake pipe is laid without tension and with sufficient distance to adjoining components.

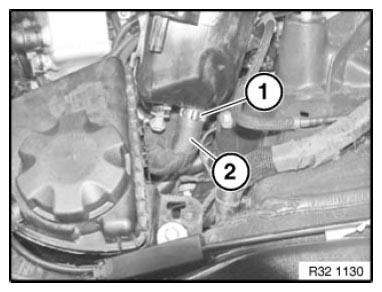

Fig 2: Identifying Intake Pipe With Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Fill and bleed hydraulic system . See 32 13 006 BLEEDING POWER STEERING (VERSION WITH DYNAMIC DRIVE) or 32 13 006 BLEEDING POWER STEERING UNIT .
Check line connections for leak tightness
