17 22 010 Removing and installing/replacing heat exchanger for automatic transmission (N62)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see COOLING SYSTEM - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

17 0 030

Follow instructions for working on cooling system. Refer to 17 00 ... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM .

Drain coolant from radiator.

Installation:

Top up coolant and vent cooling system. Refer to 17 00 005 DRAINING AND ADDING COOLANT (N62) .

Recycling:

Catch and dispose of drained coolant.

Transmission fluid emerges when oil lines are detached from heat exchanger.

Catch and dispose of escaping transmission fluid.

Observe country-specific waste-disposal regulations.

Unlock water hoses (1) on heat exchanger (3) and disconnect.

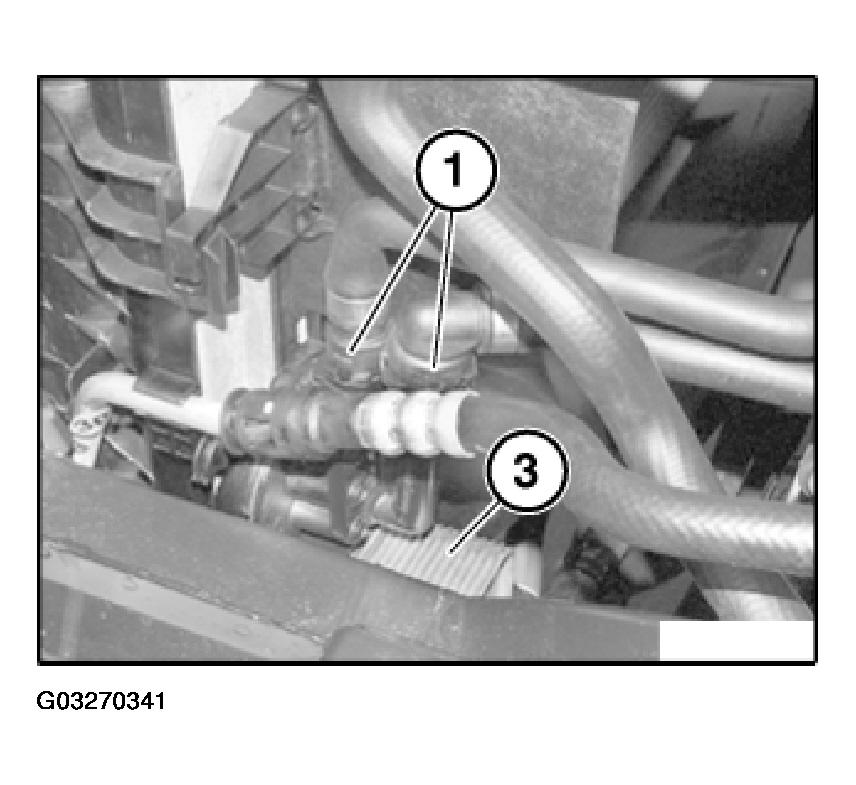

Fig 1: Locating Water Hoses On Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut and remove hydraulic hose (1) with holder from mounting.

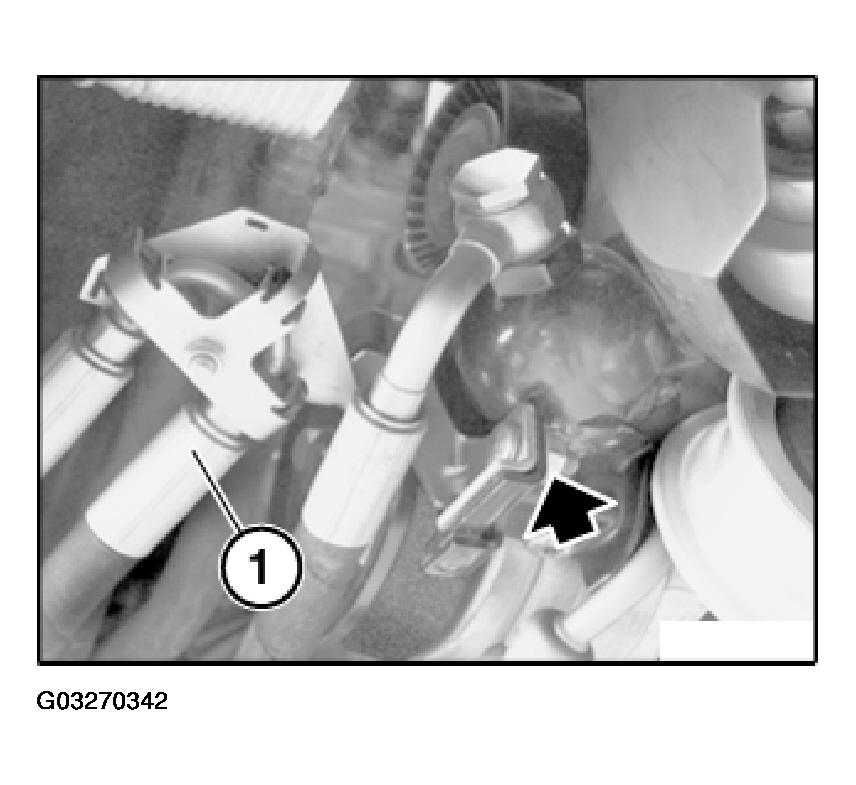

Fig 2: View Of Hydraulic Hose With Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull spring clamp (1) downwards.

Remove heat exchanger (3).

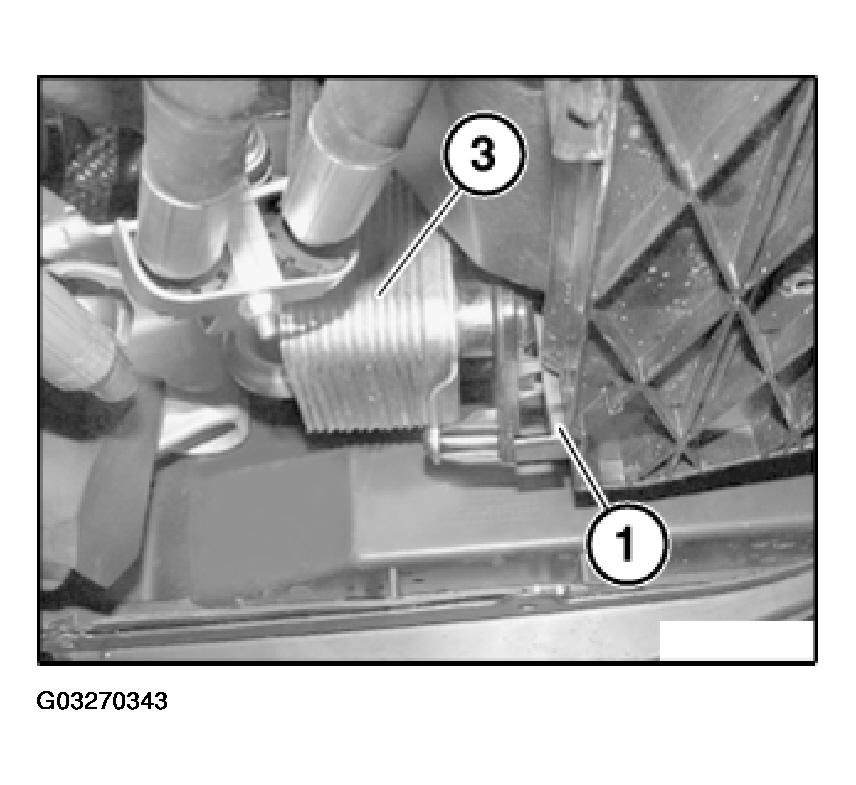

Fig 3: Identifying Spring Clamp On Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock hydraulic lines (1 and 2) on heat exchanger (3) with special tool 17 0 030 and disconnect.

Installation:

Connect hydraulic line (2) with TOP marking to upper pipe of heat exchanger.

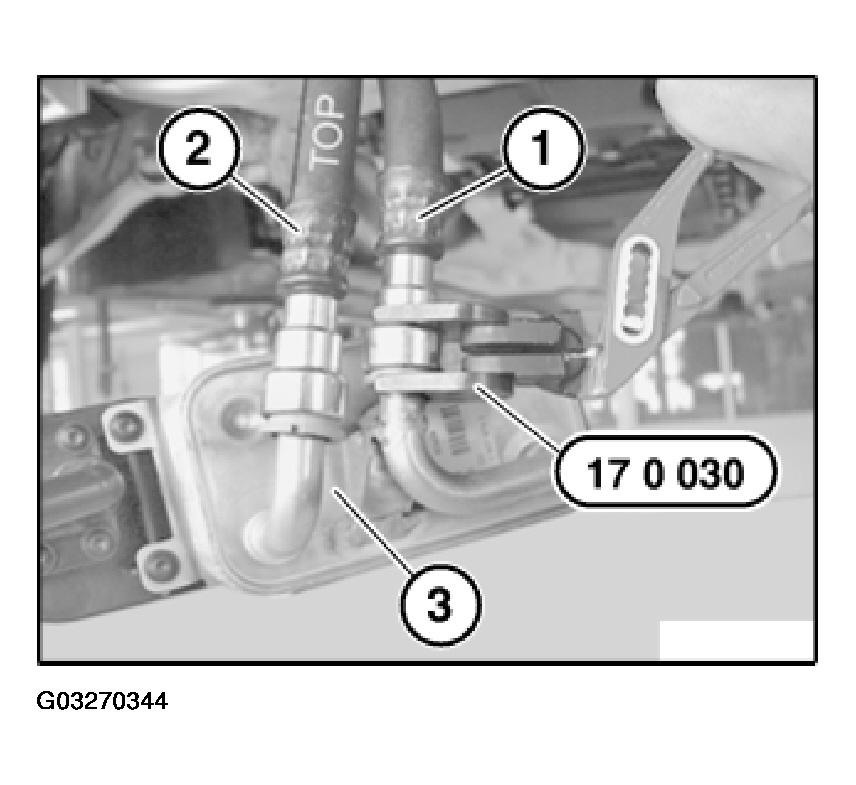

Fig 4: Locating Hydraulic Lines Of Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Check fluid level in automatic transmission.
