17 11 035 Removing and installing/replacing fan cowl with electric fan (N62, N62TU)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Read out fault memory of DME control unit.
Switch off ignition.
Remove radiator cover. Refer to REMOVING RADIATOR COVER .

Unlock plug (1) on AUC sensor and disconnect.

Unlock plug (2) and remove.

NOTE: Modify AUC sensor when replacing fan cowl.

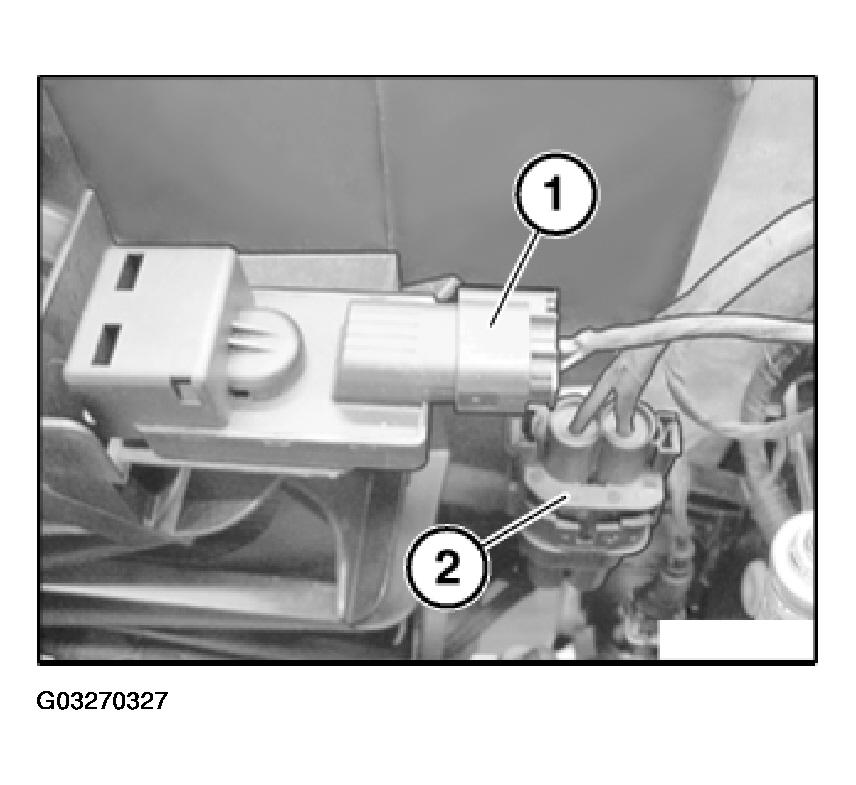

Fig 1: Locating Plug On AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Raise fan cowl (1) approx. 3 cm.

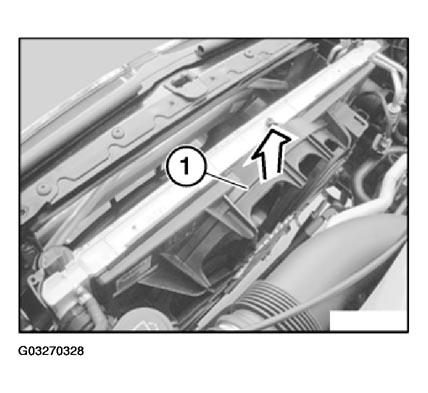

Fig 2: Aligning Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, this work step is shown on the fan cowl after it has been removed.

Fold in left retaining tab (1) in direction of arrow.

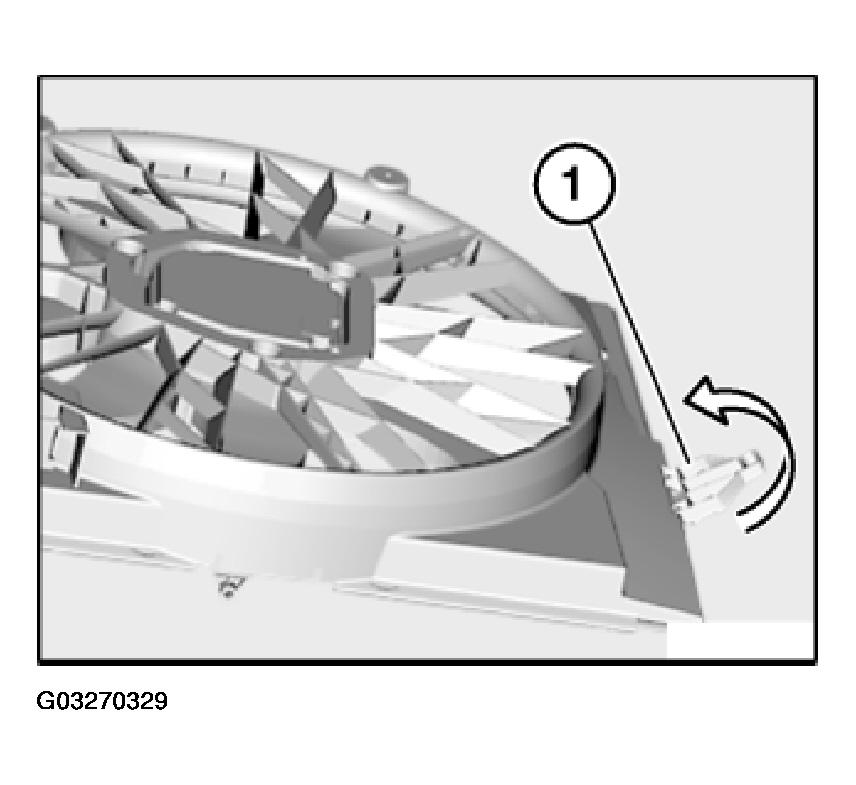

Fig 3: Identifying Left Retaining Tab On Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan cowl (1) in direction of arrow.

Fig 4: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Check stored fault messages.

Clear DME fault memory.
