54 37... Lowering inner headlining for roof shell, middle

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 310

Installation:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 min. (start of curing)
Microencapsulated screws must not be retightened
Thread of nut must be cleaned beforehand in event of repeated use

Move convertible top into service position .

Move convertible top so that angle of hinges is not ≤90°.

IMPORTANT: Risk of damage! Pressure in hydraulic system drops and convertible top loses its position.

Support rear roof shell to convertible top cover with suitable auxiliary material.

Auxiliary material must lie over wide area and over entire length.

Rear roof shell is supported by auxiliary material on convertible top cover.

Fig 1: Identifying Convertible Top Angle

Courtesy of BMW OF NORTH AMERICA, INC.

Roof shells block each other.

Tie a safety knot into tensioning strap on left and right to prevent the tensioning strap from coiling up.

IMPORTANT: Release safety knot after installation.

Fig 2: Identifying Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers (2) with screwdriver and pull roof liner (1) off roof shell.

Installation:

Retainers (2) must not be damaged and must be pre-installed.

Check that roofliner is firmly seated. If necessary, bend retainers closed prior to installation.

Fig 3: Pulling Roof Liner Off Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip roof liner at front with special tool 51 0 310.

Installation:

If necessary, replace faulty clips.

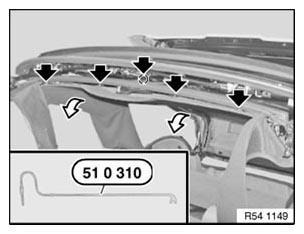

Fig 4: Unclip Roof Liner At Front With Special Tool 51 0 310

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip roof liner at rear with special tool 51 0 310.

Installation:

If necessary, replace faulty clips.

Fig 5: Roof Liner At Rear With Special Tool 51 0 310

Courtesy of BMW OF NORTH AMERICA, INC.

Pull tensioning strap completely out of automatic reel.

Tie a safety knot into tensioning strap to prevent the tensioning strap from coiling up.

IMPORTANT: Release safety knot after installation.

Unscrew nuts (1).

Tightening torque: see 18AZ in 54 37 POWER CONVERTIBLE TOP .

Installation:

Replace compression nuts.

Fig 6: Identifying Automatic Reel And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove automatic reel (2).

Lower roofliner and stow in vehicle.
