Seal for front roof shell

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Old:

Two filler pieces are fitted in the front area of the seal. Filler pieces can be identified by touch.

New:

Seal without filler pieces. Filler pieces cannot be identified by touching.

Fig 1: Identifying Old Seal For Front Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

New:

The side edge of the front seal is pulled down a further 1.5 mm. Window glass retracts into this seal by a further 1.5 mm.

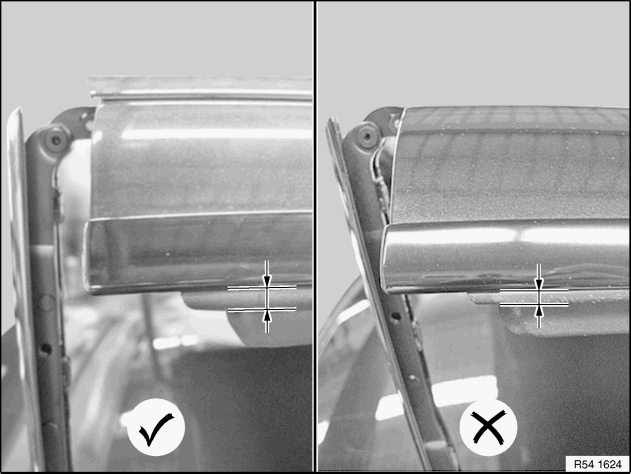

Fig 2: Identifying Old/New Seals For Front Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.
