54 37 245 Removing and installing/replacing both base plates

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Close the soft top and measure the gap dimension between cowl panel and roof pan in front. Note down value.
Remove cowl panel cover .

IMPORTANT: Never loosen both base plates at the same time.

Disconnect and unclip cables (1).

Release screws (2) for left base plate.

Tightening torque: 8 +/- 1 Nm

Remove left base plate.

Fig 1: Identifying Screws And Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Tightening torque: 4, 6 +/- 0, 7 Nm

Modify microswitches (2).

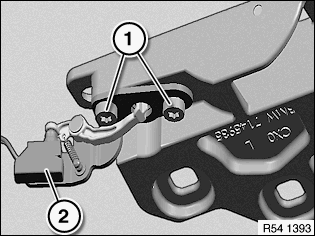

Fig 2: Identifying Microswitches And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install left base plate. Tighten screws until the base plate can barely be moved.
Close soft top. Float the base plate in. Tighten down screws. Compare the gap dimension with the recorded values. If necessary, open soft top. Correct the position of the left base plate in longitudinal direction of the vehicle and close the soft top again.
Close soft top. Float the base plate in. Tighten down screws. Compare the gap dimension with the recorded values. If necessary, open soft top. Correct the position of the left base plate in longitudinal direction of the vehicle and close the soft top again.

IMPORTANT: Do not repeat the procedure for the right base plate until the left base plate has been adjusted and the functional check of the soft top function procedure is completed successfully.
