54 37 235 Removing and installing/replacing holder for C-pillar flap

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 min. (start of curing)
Microencapsulated screws must not be retightened
Thread of nut must be cleaned beforehand in event of repeated use

Release Torx screws (1) for C-pillar flaps.

Tightening torque: see 21AZ in 54 37 POWER CONVERTIBLE TOP .

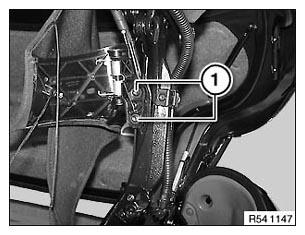

Fig 1: Identifying C-Pillar Flap Torx Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off snap ring (1).

Drive out pin and remove holder with spring.

Remove tension spring.

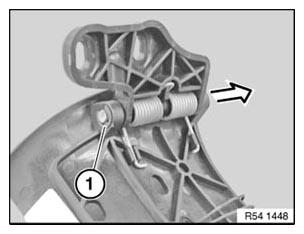

Fig 2: Removing Tension Spring

Courtesy of BMW OF NORTH AMERICA, INC.

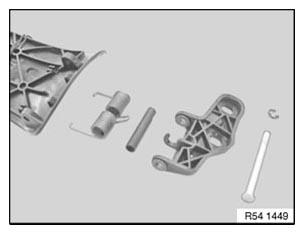

Overview of single parts .

Fig 3: Overview Of Single Parts

Courtesy of BMW OF NORTH AMERICA, INC.
