54 37 232 Removing and installing support block

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Move roof module into following intermediate station.

Fig 1: Moving Roof Module

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows removal of left side.
The right side is removed in the same way as the left side.

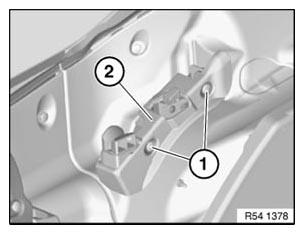

Lever out expansion rivets (1).

Remove trim (2) for support block.

Fig 2: Identifying Expansion Rivets And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

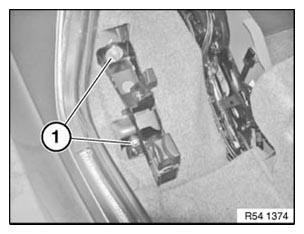

Unscrew nuts (1).

Remove support block.

Fig 3: Identifying Support Block Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

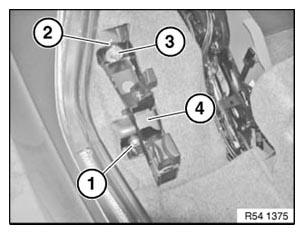

NOTE: Observe following work steps for installing support block:

Observe screwing sequence for support block (4).

Turn banjo bolt (2) back.

Tighten nut (1).

Tightening torque: see 25AZ in 54 37 POWER CONVERTIBLE TOP .

Insert banjo bolt lock (2) until contact is made with body.

Tighten nut (3).

Tightening torque: see 25AZ in 54 37 POWER CONVERTIBLE TOP .

Fig 4: Identifying Banjo Bolt Lock With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Move support element (2) upwards to maximum extent.

Insert screw (1) until contact is made.

It must still be possible to slide the support element (2).

Fig 5: Moving Support Element Upwards To Maximum Extent

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) until contact is made.

It must still be possible to slide the guide element (2).

Stow roof module.

Storage element (3) adjusts itself to support height.

Guide element (2) slides into correct position.

Extend roof module until support block is accessible.

Tighten screws (1) and (4).

Fig 6: Sliding Guide Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install trim for support block.
