54 37 050 Removing and installing/replacing trim strip on convertible top compartment lid
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
For purposes of clarity, the following operations are shown with the component removed:
Necessary preliminary tasks:
Close rear module.
NOTE:
Shown removed here for purposes of clarity.

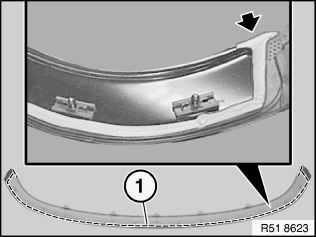

Carefully unclip trim strip (1) from the soft top compartment lid and remove.
Installation:
Replace faulty clips.
Remove remains of butyl rope from trim strip and soft top compartment lid.
Installation:
Install new butyl rope along marking (1).
At each end, finish butyl rope in a "T" shape.
