54 37 035 Removing and installing/replacing roofliner for roof shell at front

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 310

Move convertible top into service position .

Move convertible top so that angle of hinges is not ≤90°.

IMPORTANT: Risk of damage! Pressure in hydraulic system drops and convertible top loses its position.

Support rear roof shell to convertible top cover with suitable auxiliary material.

Auxiliary material must lie over wide area and if possible over entire length.

Rear roof shell is supported by auxiliary material on convertible top cover.

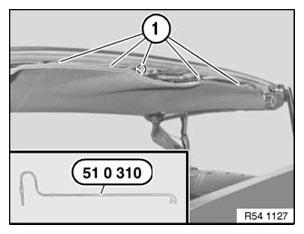

Fig 1: Identifying Convertible Top Service Position

Courtesy of BMW OF NORTH AMERICA, INC.

Roof shells block each other.

Lever out left and right clips (1).

Installation:

If necessary, replace faulty clips.

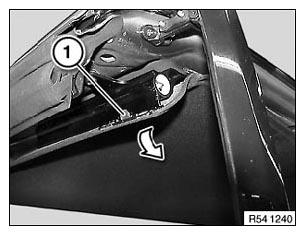

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Lever all clips out of roofliner at front.

Installation:

If necessary, replace faulty clips.

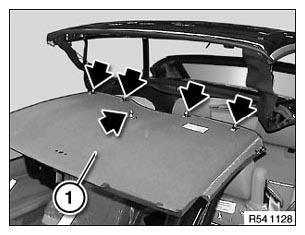

Fig 3: Identifying Roofliner Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip roofliner at rear left and right from roof shell.

Installation:

Retainers (1) must not be damaged and must be pre-installed.

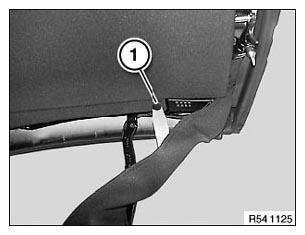

Fig 4: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip roofliner in rear area with special tool 51 0 310.

Installation:

If necessary, replace faulty clips (1).

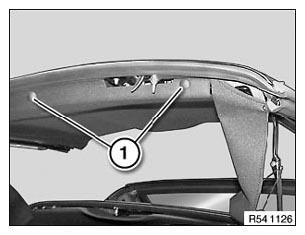

Fig 5: Identifying Roofliner Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pre-install clips in roofliner (1).

Fig 6: Identifying Roofliner Clips

Courtesy of BMW OF NORTH AMERICA, INC.
