54 37 030 Replacing butyl at front left or right roof shell seal

Installation note:

• Screws with sealing compound must be replaced and must not be reused
• Thread of nut must be cleaned beforehand

New parts required:

• Butyl rope Ø 4 mm 83 22 2 159 535
• Butyl rope Ø 7 mm 83 19 0 416 659
• Butyl flat tape 1.5 mm x 15 mm 83 19 0 153 321

Removing the seal:

Measure gap dimensions in following areas with special tool 00 9 470 (Gap gauge):

1. between roof shell and trim strip
2. between front and middle trim strips

   Note down gap dimensions.

Fig 1: Measuring Gap Dimensions With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

• Move soft top to working position.

Release screw (1).

Tightening torque: 5 Nm

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unbutton tab (1).

Fig 3: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 5 Nm

Heat seal to approx. 60 °C with hot air blower.

Remove seal at left side of vehicle.

Fig 4: Identifying Roof Shell Left And Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation:

On-the-job safety:

• Comply with the relevant safety regulations

Remove residual butyl from roof shell and seal.

Clean adhesive area with adhesive remover.

Air drying time: = 1 minute

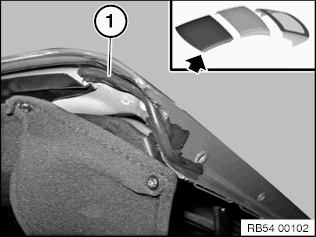

Apply butyl flat tape (1) to corner of roof shell (30 mm in length). Maintain distance of 20 mm from threaded bush.

Fig 5: Identifying Butylene Flat Tape On Front Roof Shell Corner, Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

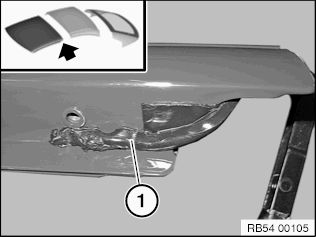

Prepare butyl rope Ø 7 mm and 250 mm in length.

Starting at seal carrier, apply butyl rope as far as threaded bushing and cut off excess butyl.

Fig 6: Applying Butyl Rope As Far As Threaded Bushing

Courtesy of BMW OF NORTH AMERICA, INC.

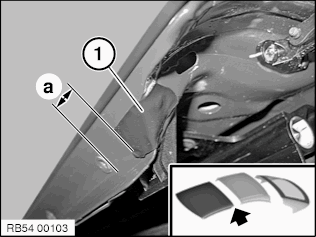

Apply butyl flat tape (1) to corner of roof shell (30 mm in length). Maintain distance of 20 mm (dimension a) from threaded bushing.

Fig 7: Applying Butyl Flat Tape To Corner Of Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

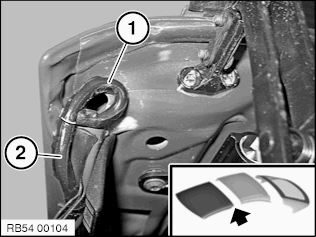

Prepare butyl rope Ø 4 mm and 30 mm in length.

Apply butyl rope Ø 4 mm (1) around elongated hole.

Prepare butyl rope Ø 7 mm and 150 mm in length.

Apply butyl rope Ø 7 mm (2) along edge.

Fig 8: Applying Butyl Rope

Courtesy of BMW OF NORTH AMERICA, INC.

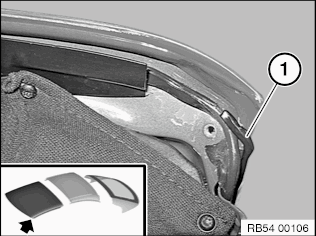

Apply butyl rope with Ø 7 mm (1) and cut off excess butyl.

Fig 9: Applying Butyl Rope With Ø 7 Mm

Courtesy of BMW OF NORTH AMERICA, INC.

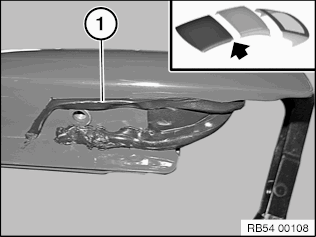

Prepare butyl rope Ø 4 mm and 150 mm in length.

Apply butyl rope in area (1).

Fig 10: Applying Butyl Rope In Area Specified (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

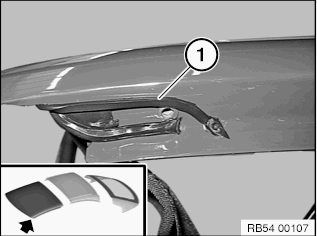

Apply butyl rope in area (1) and cut off excess butyl.

Fig 11: Applying Butyl Rope In Area Specified (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Apply butyl rope in area (1) and cut off excess butyl.

Fig 12: Applying Butyl Rope In Area Specified (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

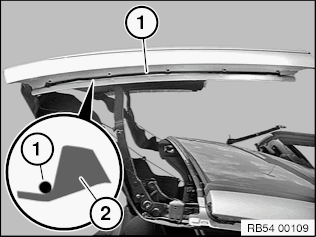

Prepare butyl rope Ø 7 mm and 500 mm in length. Apply butyl rope in area (1).

Ensure that butyl rope (1) is correctly positioned in radius of roof shell (2).

Fig 13: Applying Butyl Rope Correctly Positioned In Radius Of Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the seal:

Fit seal starting from the front.

Align attachment point (1) of seal in relation to thread.

Push on seal at front and side.

Fig 14: Aligning Seal With Screw Fastening Point To Thread In Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Button tab (1) into roof shell.

Distribute butyl evenly beneath the tab.

Fig 15: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Loosely screw in new bolts.

Remove support and close roof.

Align seal in a flush position at front and rear and screw in position. Check gap dimensions.

Tightening torque: 5 Nm

Fig 16: Measuring Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Checks:

• Check seal for escaping butyl. If possible, allow vehicle to stand with roof closed for several hours. Repeat test.

  Remove escaping butyl .

• Check that bolts are firmly seated. There must not be a gap between the bolt head and the seal.
• Carry out leak test. To do this, attach a hose to the roof and allow water to run over the affected area for 20 minutes.
