Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten screws (1) and nuts (2).

Remove transmission cross-member.

Tightening torque 24 71 1AZ/2AZ

NOTE: Illustration similar.

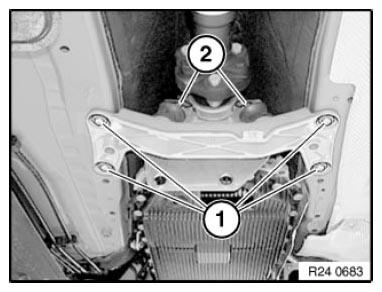

Fig 1: Identifying Transmission Cross-Member Screws And Nuts
G08419485Courtesy of BMW OF NORTH AMERICA, INC.
