Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear underbody protection. See 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
- Support transmission with lifter.

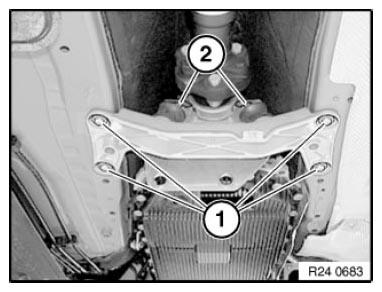

Unfasten screws (1) and nuts (2).
Remove transmission cross-member.
Remove rubber mount from transmission cross-member.
Tightening torque 24 71 1AZ/2AZ.
NOTE:
Illustration similar.
