Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Secure engine in installation position. See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N54) .
Remove air intake filter housing.
Remove charge air duct.

Release grounding strap (1) from engine support arm.

Release screw (2) and remove bracket.

Release screws (3).

Remove engine support arm.

Tightening torque 22 11 3AZ

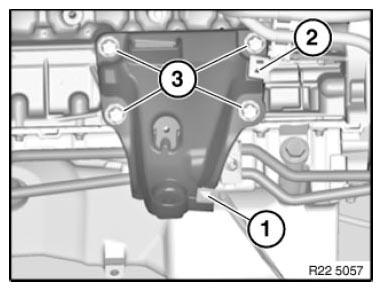

Fig 1: Identifying Grounding Strap, Bracket Screw And Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
