Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
- Remove right ENGINE MOUNT
- Remove reinforcement plate (AWD)
- Remove catalytic converters

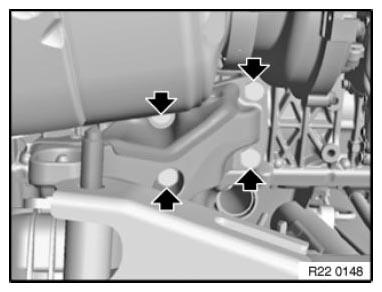

Release screws.
Remove engine support arm from engine.
Tightening torque 22 11 3AZ
NOTE:
Illustration similar.
