Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Secure engine in installation position. See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N54) .
Remove underbody protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION
Remove left V-strut (E93 only)

NOTE: E90/E91/E92 only

Remove stiffening strut (1).

Release screws (2) and remove engine mount.

Tightening torque 22 11 1AZ .

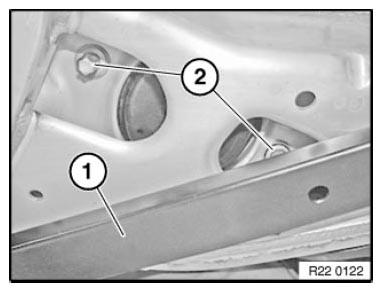

Fig 1: Identifying Stiffening Strut And Engine Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber section (1) of engine mount must point to middle of vehicle.

Engine mount designations:

Right engine mount

Even component number

Left engine mount

Odd component number

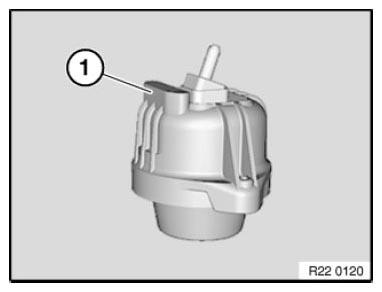

Fig 2: Identifying Rubber Section Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.
