Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Secure engine in installation position. See 11 00 670 SECURING ENGINE IN INSTALLATION POSITION (N54) .
Remove underbody protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION
Release tie rod on steering gear
Remove right V-strut (E93 only)

Release bolts (1).

Remove heat shield (2).

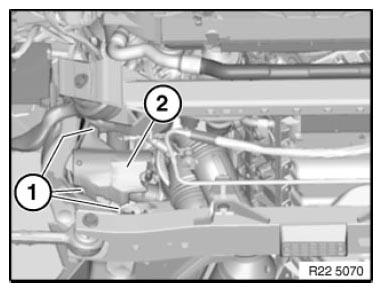

Fig 1: Identifying Bolts And Heat Shield

G08419489

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) and remove engine mount towards front.

Tightening torque 22 11 1AZ .

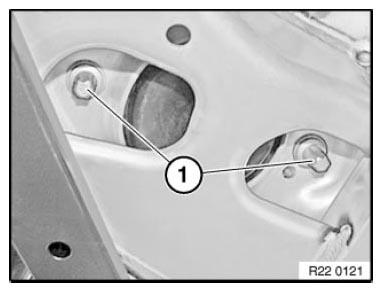

Fig 2: Identifying Engine Mount Bolts

G08419490

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure rubber (1) is correctly located.

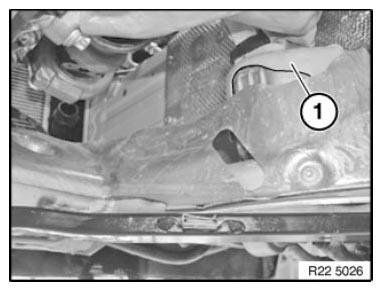

Fig 3: Identifying Rubber

G08419491

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber section (1) of engine mount must point to middle of vehicle.

Engine mount designations:

Right engine mount

Even component number

Left engine mount

Odd component number

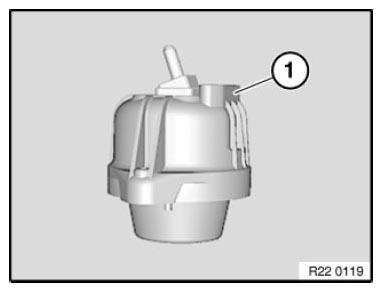

Fig 4: Identifying Rubber Section Of Engine Mount

G08419492

Courtesy of BMW OF NORTH AMERICA, INC.
