Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove EXHAUST SYSTEM

NOTE: Interfaces for the center silencer (3) are marked with a notch in the pipe.

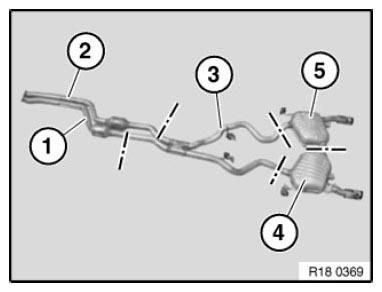

Fig 1: Identifying Exhaust Pipe With Catalytic Converter

G08419474

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect and deburr exhaust pipes in the marked areas using commercially available workshop materials and special tools 00 2 210.

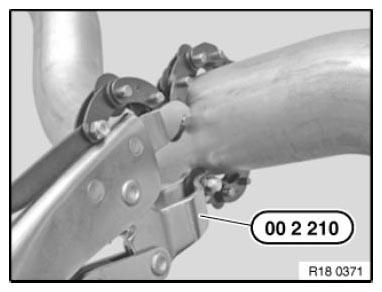

Fig 2: Disconnecting Exhaust Pipes In Marked Areas Using Commercially Available Workshop Materials And Special Tools 00 2 210

G08419475

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect and align the center silencer with both exhaust pipes using clamps.

Align and tighten clamps.

Tightening torque 18 31 5AZ .

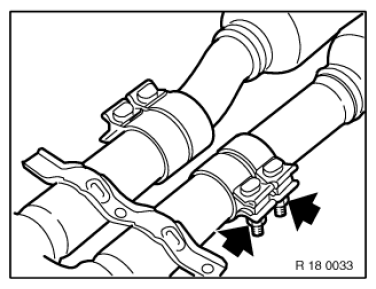

Fig 3: Aligning Centre Silencer With Both Exhaust Pipes Using Clamps

G08419476

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect and align center silencer with both rear silencers using clamps.

Align and tighten clamps.

Tightening torque 18 31 5AZ .

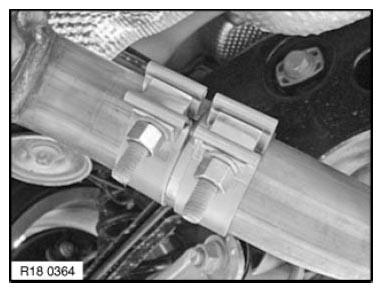

Fig 4: Aligning Centre Silencer With Both Rear Silencers Using Clamps

G08419477

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check exhaust system for leaks.
