Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Interface for exhaust pipe (2) is designated by a notch in the pipe.

Disconnect and deburr exhaust pipe (2) at marked position.

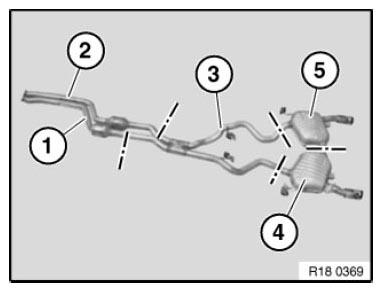

Fig 1: Identifying Exhaust Pipe With Catalytic Converter
G08419472Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect exhaust pipe to center silencer by means of clamp and align.

Align clamp and tighten down.

Tightening torque 18 00 5AZ .

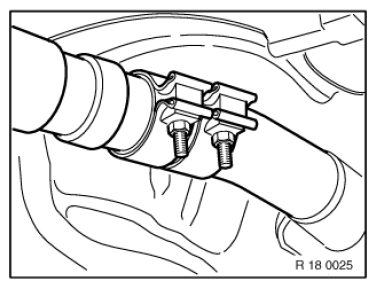

Fig 2: Aligning Exhaust Pipe Clamps
G08419473Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Check exhaust system for leaks.
