Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

E91, E92, E93 only:

Remove trailing link.

NOTE: Interface for exhaust pipe (1) is designated by a notch in the pipe.

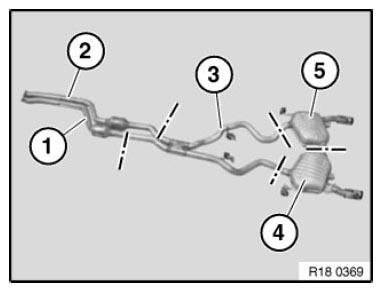

Fig 1: Identifying Exhaust Pipe With Catalytic Converter

G08419467

Courtesy of BMW OF NORTH AMERICA, INC.

Cut exhaust pipe with special tool 00 2 210 at marked point and deburr.

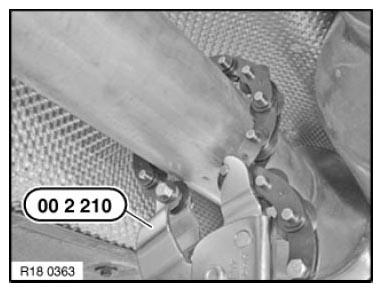

Fig 2: Cutting Exhaust Pipe With Special Tool 00 2 210 At Marked Point And Deburr

G08419468

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts for left exhaust pipe.

Installation note:

Replace self-locking nuts.
Replace gasket.
Tightening torque 18 00 1AZ .

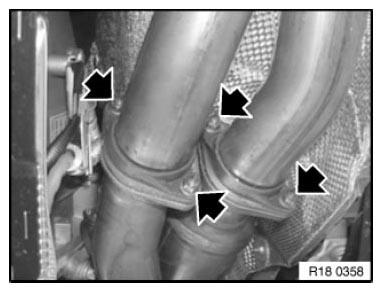

Fig 3: Locating Self-Locking Nuts

G08419469

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Tightening torque 18 20 1AZ .

Take off holder (1) and remove exhaust pipe.

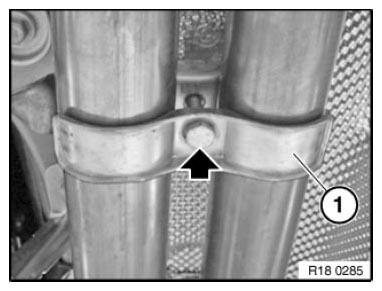

Fig 4: Identifying Holder And Exhaust Pipe

G08419470

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect exhaust pipe to center silencer by means of clamp and align.

Align clamp and tighten down.

Tightening torque 18 00 5AZ .

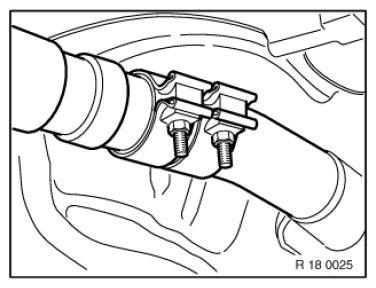

Fig 5: Aligning Exhaust Pipe Clamps

G08419471

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check exhaust system for leaks.
