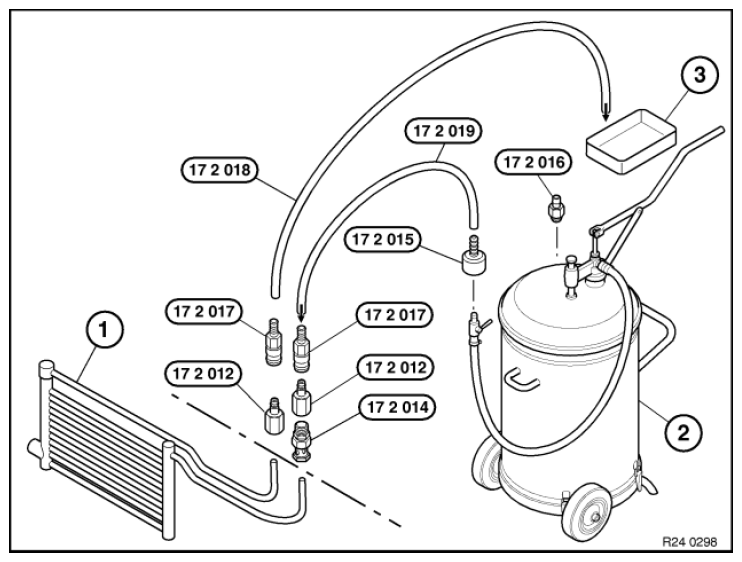

Arrangement of flushing apparatus for transmission A4S 300J
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
- Transmission oil cooler with lines
- Oil collection unit
- Oil drip tray
17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)
17 2 014 Banjo bolt for connecting transmission-side oil cooler lines (1)
17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or
17 2 016 Connection for oil collection unit (2), manufacturer: Horn
17 2 017 Quick-release coupling (2 pieces)
17 2 018 Hose to oil drip tray (3)
17 2 019 Hose to oil collection unit (2)
