Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Press lines (1) in direction of cooling loop (2), pull back locking ring towards rear. Keep locking ring pressed and detach lines (1) from cooling loop (2).

IMPORTANT: Catch and dispose of emerging oil.

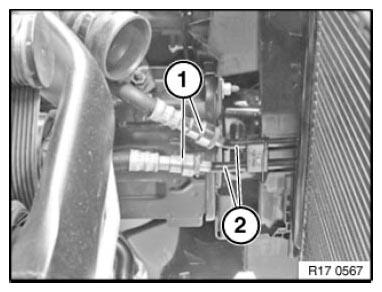

Fig 1: Identifying Lines And Cooling Loop
G08419394Courtesy of BMW OF NORTH AMERICA, INC.

Unlock seal (1) in direction of arrow and remove.

Release screw.

NOTE: Lines of A/C system remain connected to capacitor.

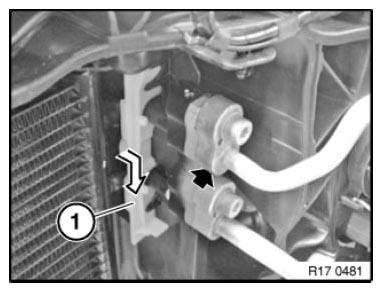

Fig 2: Identifying Seal Unlock Direction
G08419395Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) upwards.

Carefully tilt capacitor (2) in direction of engine, taking care not to damage the capacitor or lines in the process.

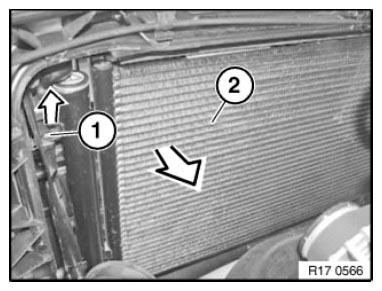

Fig 3: Identifying Capacitor Tilting Direction
G08419396Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1).

Unclip cooling loop (2) from holder (3) and remove.

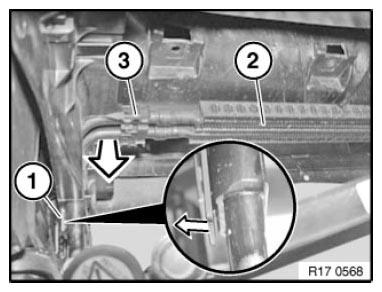

Fig 4: Identifying Lock, Cooling Loop And Holder
G08419397Courtesy of BMW OF NORTH AMERICA, INC.
