Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove FAN COWL .

Release screw.

Tightening torque 17 21 1AZ .

Detach engine oil pipe (1) from oil filter control housing.

Catch and dispose of emerging oil.

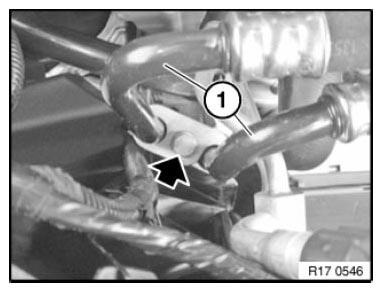

Fig 1: Identifying Engine Oil Pipe At Oil Filter Control Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Tightening torque 17 21 2AZ .

Disconnect engine oil pipe (1) from engine oil cooler flange and remove.

Catch and dispose of emerging oil.

IMPORTANT: When tightening down the bolt, use suitable means/equipment to prevent the flange from twisting.
Twisting of the flange can lead to contact with the front panel! This in turn results in vibration noises and corrosion damage.

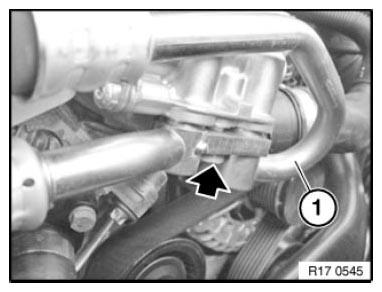

Fig 2: Identifying Engine Oil Pipe At Engine Oil Cooler Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all sealing rings of engine oil pipes!

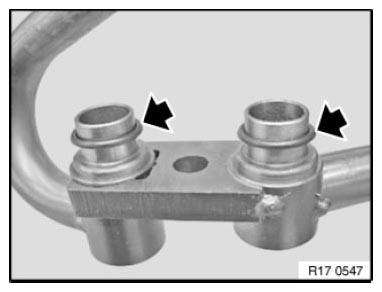

Fig 3: Locating Sealing Rings Of Engine Oil Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing the repair work check oil level; top up if necessary.
