17 11 150 Removing and installing/replacing engine oil cooler (N54, N54T, N55): Recycling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Engine oil escapes when the engine oil pipes are released. Catch and dispose of emerging engine oil.

Observe country-specific waste disposal regulations.

Release screw.

Tightening torque 17 21 2AZ .

Detach engine oil pipes (1) from engine oil cooler flange.

Catch and dispose of emerging oil.

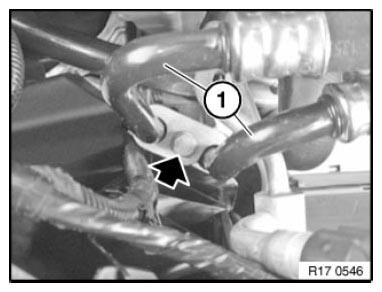

Fig 1: Identifying Engine Oil Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings.

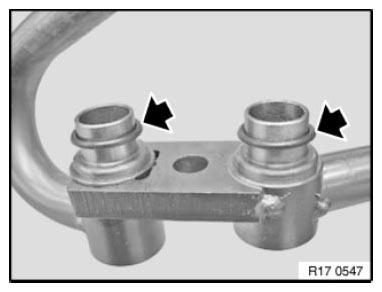

Fig 2: Locating Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Unscrew nuts (1).

Tightening torque 17 21 3AZ .

Release screw (2).

Tightening torque 17 21 4AZ .

Feed out engine oil cooler (3) and remove.

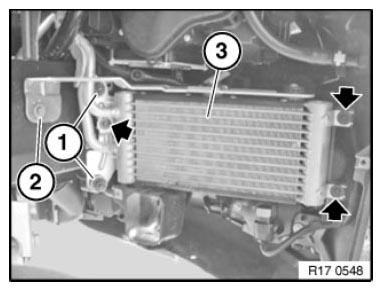

Fig 3: Identifying Nuts, Screw And Engine Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing the repair work, check engine oil level and top up engine oil if necessary.
