Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Texts refer to and illustrations show the left side. The procedure is identical for the right intake duct.

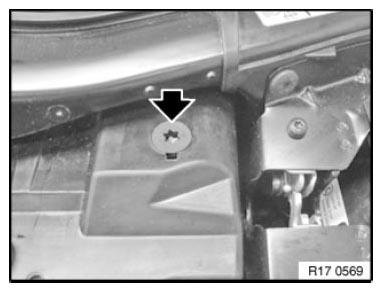

Release screw.

Tightening torque 17 11 1AZ .

Fig 1: Locating Screw
G08419410Courtesy of BMW OF NORTH AMERICA, INC.

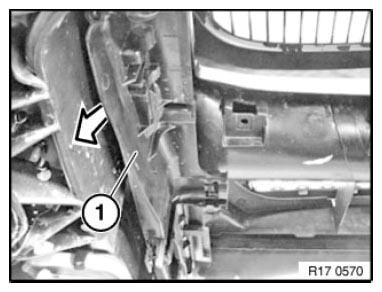

Remove holder (1).

Fig 2: Identifying Holder
G08419411Courtesy of BMW OF NORTH AMERICA, INC.
