17 11 046 Removing and installing / replacing module carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COOLANT COOLER
If necessary, slacken power steering cooling coil; refer to REMOVING POWER STEERING COOLING COIL
If necessary, slacken A/C condenser and secure against damage and against falling down.

Release damping pieces.

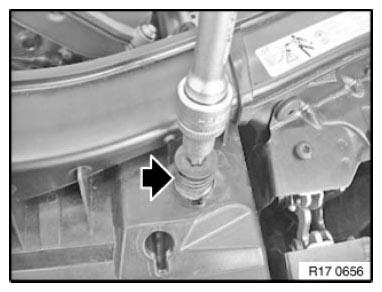

Fig 1: Locating Damping Pieces

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) and remove holder (2) downwards.

Illustration shows the left holder: The same procedure applies to the opposite side.

Installation:

Rubber mounts fall out easily, ensure correct installation position.

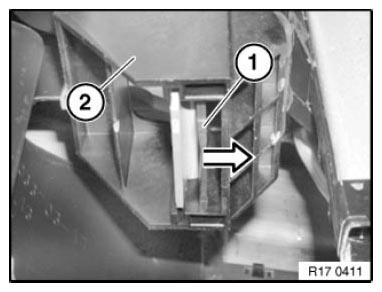

Fig 2: Identifying Lock And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove module carrier (1) individually towards bottom.

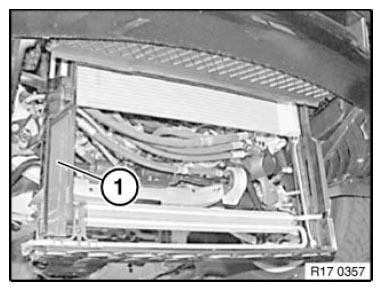

Fig 3: Identifying Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing module carrier:

Convert power steering COOLING LOOP .
