Only automatic or twin-clutch gearbox

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

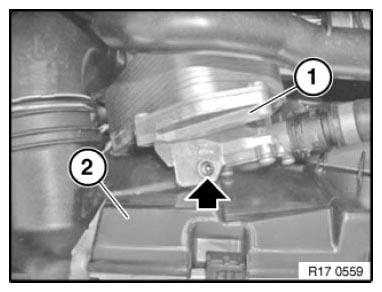

Release screw.

Detach cooler (1) for automatic transmission from fan cowl (2).

Fig 1: Identifying Screw, Cooler And Fan Cowl

G08419398

Courtesy of BMW OF NORTH AMERICA, INC.

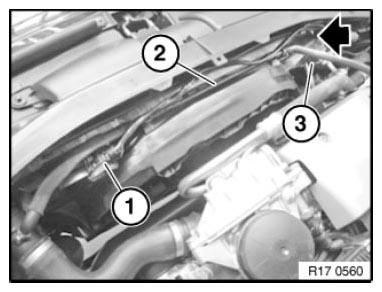

Unlock connector (1) and remove.

Unclip line (2) from fan cowl.

Cut open cable strap (3).

Release screw.

Fig 2: Identifying Connector, Line And Open Cable Strap

G08419399

Courtesy of BMW OF NORTH AMERICA, INC.

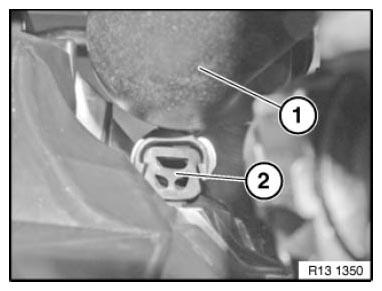

Release charge air duct (1) from rubber mount (2) on fan cowl.

Fig 3: Identifying Charge Air Duct And Rubber Mount

G08419400

Courtesy of BMW OF NORTH AMERICA, INC.

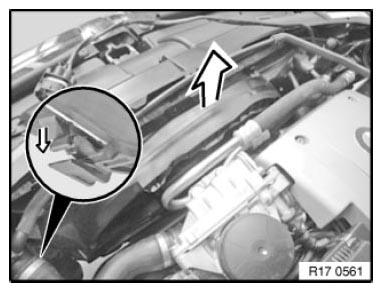

Unlock catch in direction of arrow.

Remove fan cowl towards top.

Fig 4: Identifying Catch Unlock Direction

G08419401

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

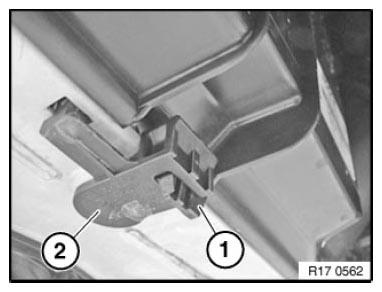

Make sure fan cowl (1) and holder (2) are in correct installation position.

Fig 5: Identifying Fan Cowl And Holder

G08419402

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Delete fault memory.
