Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Follow instructions for REPAIR WORK ON THE COOLING SYSTEM .
Remove FAN COWL .
Drain COOLANT .
Unlock coolant hoses and detach.

Only on N54, N54T:

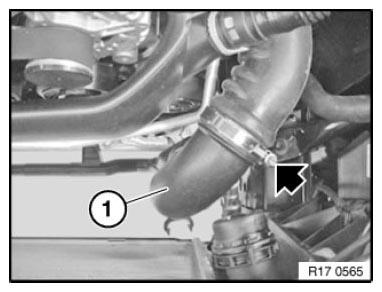

Release the clamp and detach and remove the charge air duct (1).

Tightening torque 13 71 6AZ.

Fig 1: Identifying Clamp And Charge Air Duct

G08419406

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic only:

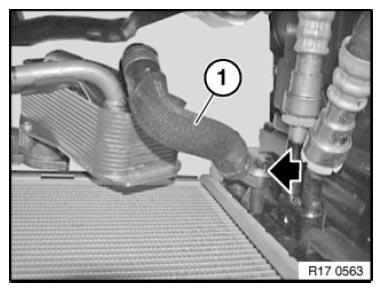

Release bolt and detach hose (1).

Fig 2: Identifying Bolt And Hose

G08419407

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic only:

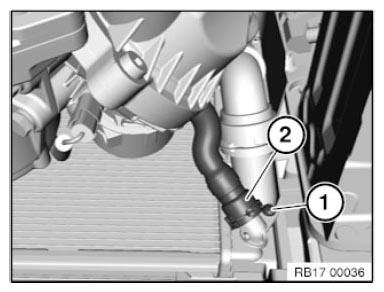

Release bolt (1) and detach hose (2).

Fig 3: Identifying Bolt And Hose

G08419408

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 17 11 2AZ .

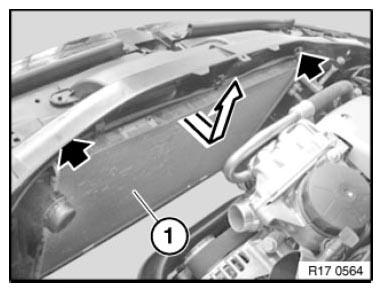

Carefully feed out radiator (1) towards top and remove.

Fig 4: Removing Radiator

G08419409

Courtesy of BMW OF NORTH AMERICA, INC.
