Dismantling of quick-release coupling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

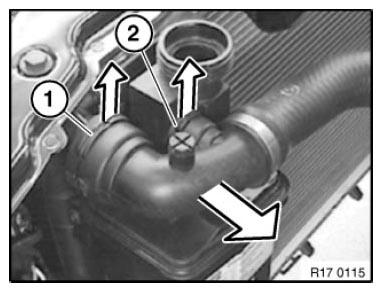

Pull out lock (1) and (2). Pull off hose.

Fig 1: Dismantling Of Quick-Release Coupling
G08419390Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

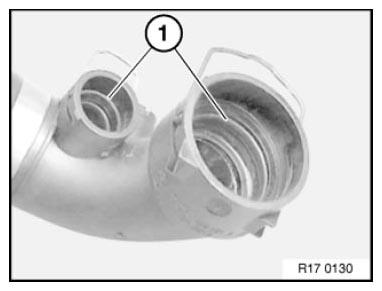

Check O-rings (1).

Do not coat O-rings (1) with lubricant.

Fig 2: Checking O-Rings
G08419391Courtesy of BMW OF NORTH AMERICA, INC.
