Assembly of quick-release coupling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Press in lock (1) before installing quick-release coupling.

Push on hose.

Quick-release couplings must clearly snap audibly into place.

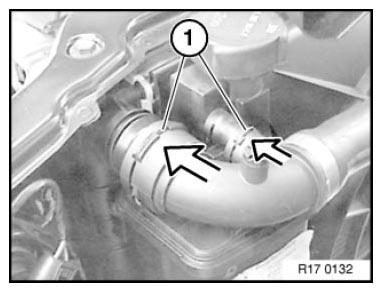

Fig 1: Assembling Of Quick-Release Coupling
G08419392Courtesy of BMW OF NORTH AMERICA, INC.
