Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.
Remove air duct.
Remove fan cowl with electronic fan.

Check production date.

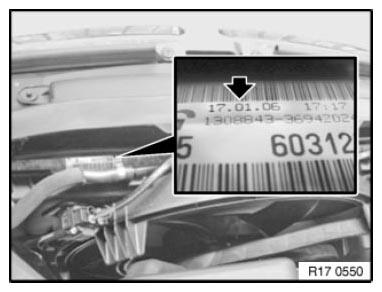

Fig 1: Locating Production Date

Courtesy of BMW OF NORTH AMERICA, INC.

Clamp off low-temperature feed lines with special tool 13 3 010.

Function test:

Observe diagnosis instructions.

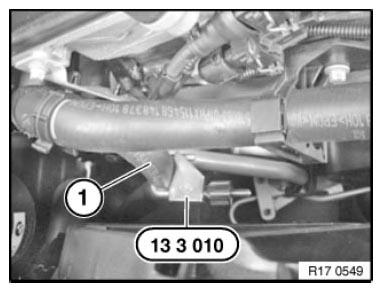

Fig 2: Identifying Low-Temperature Feed Lines And Special Tool 13 3 010

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of radiator.

Clamp off low-temperature feed line (1) at coolant pump outlet or radiator inlet with special tool 13 3 010 (see arrows).

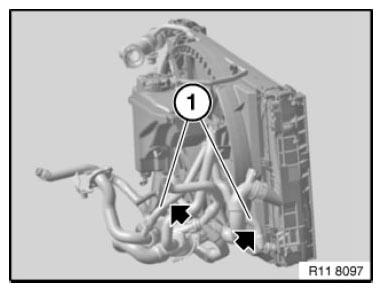

Fig 3: Locating Low-Temperature Feed Line At Coolant Pump Outlet Or Radiator Inlet

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission only

Check function of heat exchanger.

Clamp off low-temperature feed line (1) at coolant pump outlet with special tool 13 3 010 (see arrow).

Clamp off low-temperature feed line (2) at oil-coolant heat exchanger with special tool 13 3 010 (see arrow).

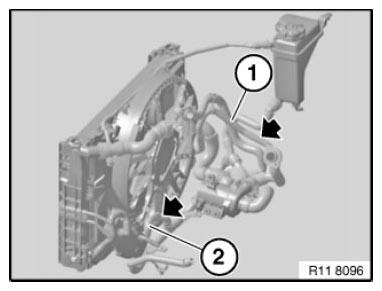

Fig 4: Locating Low-Temperature Feed Line At Coolant Pump Outlet And Oil-Coolant Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.

Check heating and cooling circuits in accordance with diagnosis instruction.
