Vehicles with independent heating only

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Open bleeder screw (1).

Slowly fill coolant expansion tank with recommended coolant. See COOLING SYSTEM - OPERATING FLUIDS .

Close bleeder screw (1) after coolant emerges.

Installation note:

Have a cleaning cloth ready and mop up emerging coolant.

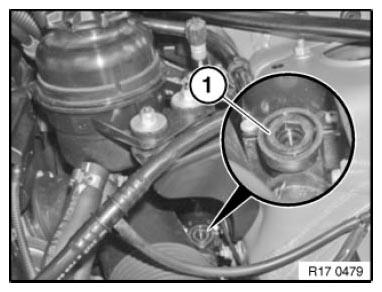

Fig 1: Identifying Bleeder Screw
G08419451Courtesy of BMW OF NORTH AMERICA, INC.
