Adding coolant

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Open bleeder screw (1).

Fill coolant expansion tank up to lower edge of filler neck with recommended coolant. Observe mixture ratio. See COOLING SYSTEM - OPERATING FLUIDS .

Close bleeder screw (1).

Close cap on expansion tank.

Installation note:

Have a cleaning cloth ready and mop up emerging coolant.

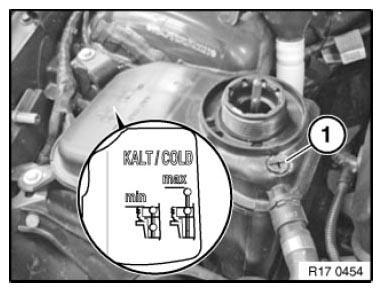

Fig 1: Identifying Bleeder Screw
G08419452Courtesy of BMW OF NORTH AMERICA, INC.
