Checking pressure drop in cooling system

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Open cap on coolant expansion tank. Fit special tool 17 0 101 / 17 0 113 .

Build up gauge pressure, wait approx. 2 minutes.

Cooling system is impervious to leaks if pressure drop is max. 0.1 bar.

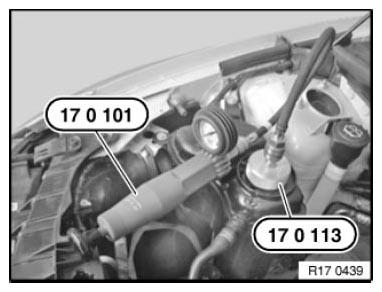

Fig 1: Identifying Special Tool 17 0 101 / 17 0 113
G08419372Courtesy of BMW OF NORTH AMERICA, INC.
