Draining coolant

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

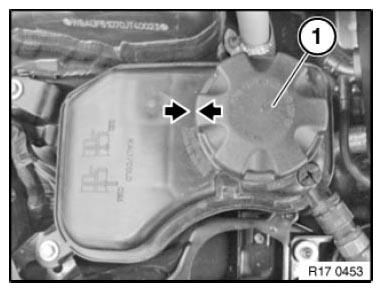

Open sealing cap (1) on coolant expansion tank (2).

Installation note:

Close sealing cap (1) until the arrow marks line up.

Fig 1: Closing Sealing Cap Until Arrow Marks Line Up

Courtesy of BMW OF NORTH AMERICA, INC.

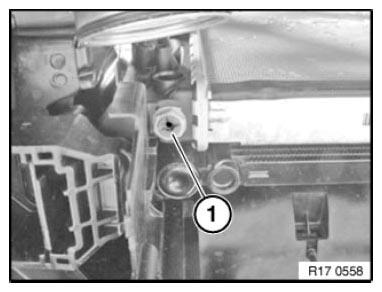

Open coolant drain plug (1).

Drain, catch and dispose of coolant.

Installation note:

Replace sealing ring.
Tightening torque 17 11 2AZ .

Fig 2: Identifying Coolant Drain Plug
Courtesy of BMW OF NORTH AMERICA, INC.

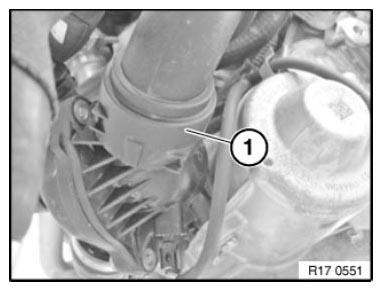

Unfasten and detach coolant hose (1) from thermostat housing.

Drain, catch and dispose of coolant.

Fig 3: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adding coolant:
Use only recommended coolant.
Observe mixture ratio. See COOLING SYSTEM - OPERATING FLUIDS .
Observe capacities. See COOLING SYSTEM - TECHNICAL DATA (N54) .
Observe bleeding instructions without fail.
FILL AND BLEED COOLING SYSTEM .
Visual inspection of cooling system for tightness.
