Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
- Remove front underbody protection.
- Unfasten and detach charge air duct on left and right of charge air cooler.
- Only E84 with pedestrian protection:
Remove pedestrian protection.
IMPORTANT:
Coat sealing rings of snap fasteners with lubricant.
Pressure pipes cannot be fitted without lubricant.
Pressure pipes cannot be fitted without lubricant.
Only, when cover (1) is installed:

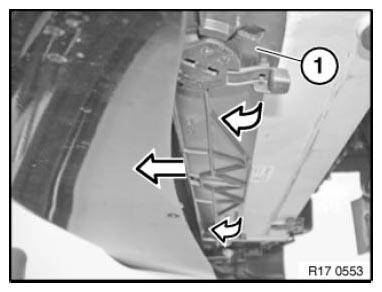

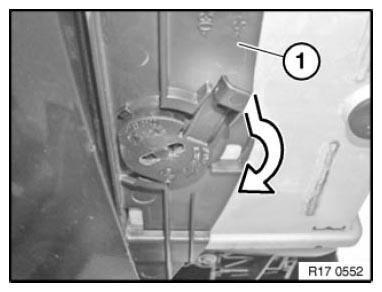

Release lock on cover (1) in direction of arrow.
Only, when cover (1) is installed:
Release cover (1) in direction of arrow and remove.

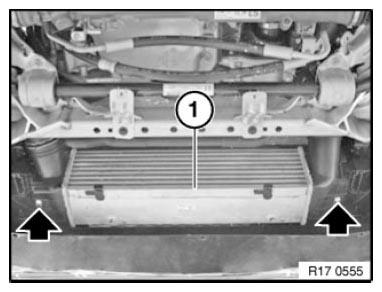

Release screws and remove charge air cooler (1).
Installation note:

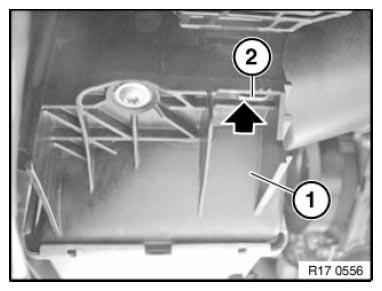

Make sure charge air cooler (1) and cooler bracket (2) are in correct installation position.
Installation note:

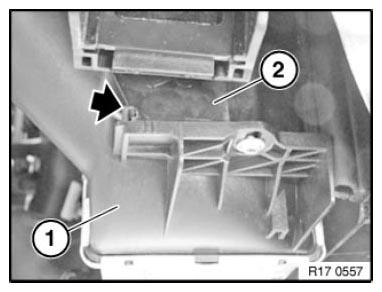

Make sure charge air cooler (1) and cooler bracket (2) are in correct installation position.
Installation note:
CAUTION:
Risk of damage
to sealing rings!
Special tool 11 8 670 is essential!
- Coat sealing rings with antiseize agent.

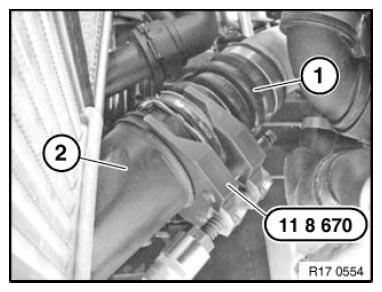

- Attach charge air duct (1) with special tool 11 8 670 to charge air cooler (2).
- Charge air ducts must audibly snap into place.
Texts refer to and illustrations show the right side. The procedure is identical for the left side.
Reassemble the vehicle.
