16 12 010 Removing and installing/replacing carbon canister (M Roadster, M Coupe and Z3/USA): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

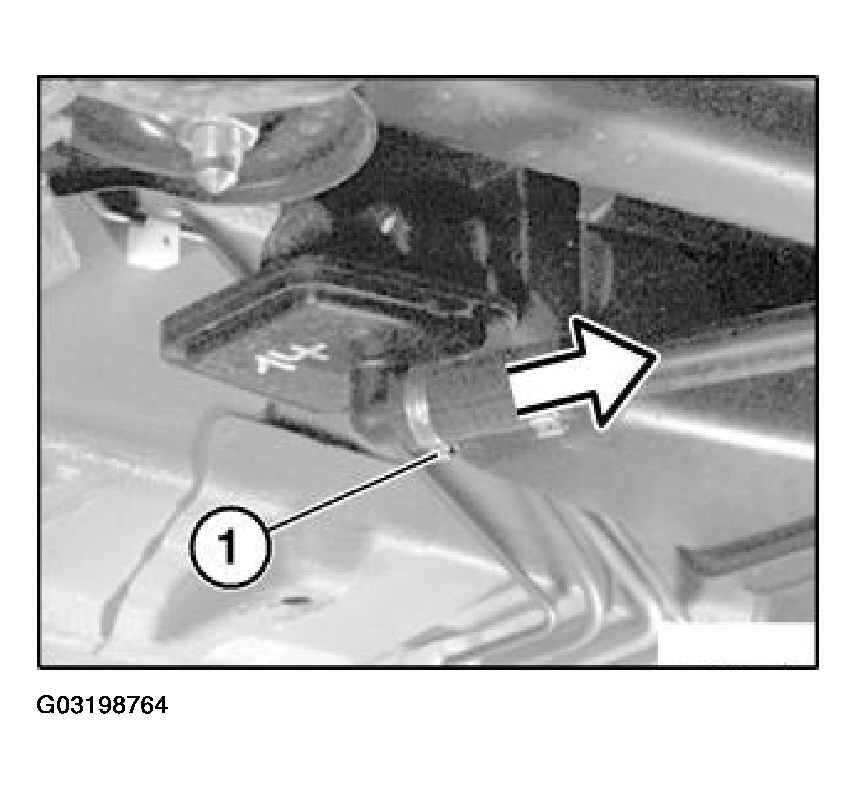

Open hose clip (1) and pull off evaporation line.

Fig 1: Pulling Off Evaporation Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace hose clip.

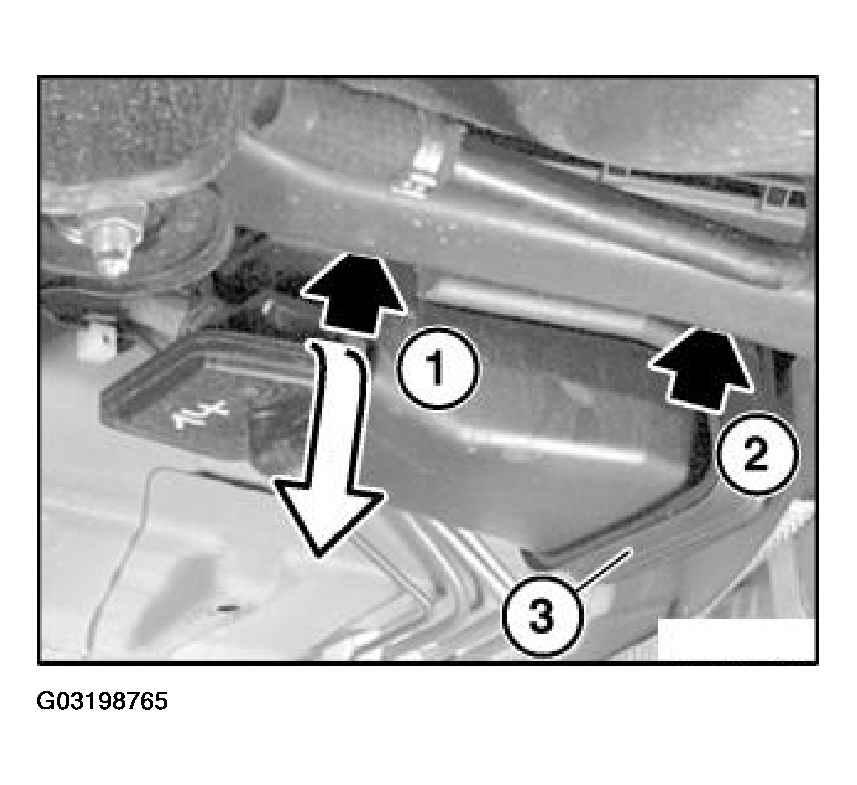

Unfasten plastic nut (1).

Unfasten hexagon bolt (2) and take off clamping strap (3).

Fig 2: Taking Off Clamping Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lower the activated carbon canister.

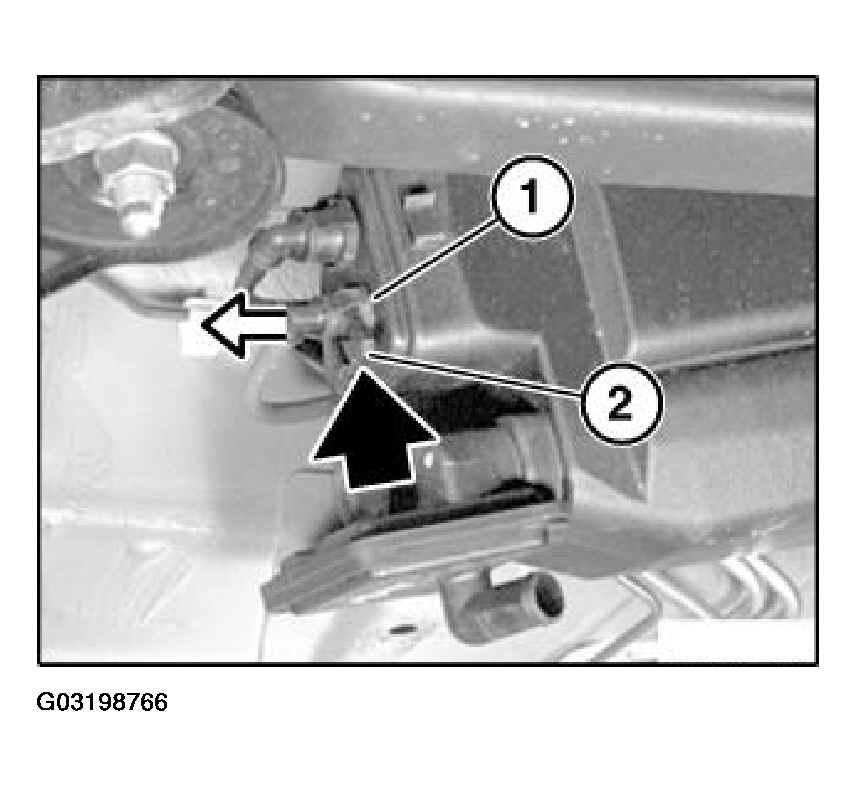

Actuate unlocking fixture (2) and pull off vent line (1).

Fig 3: Pulling Off Vent Line

Courtesy of BMW OF NORTH AMERICA, INC.

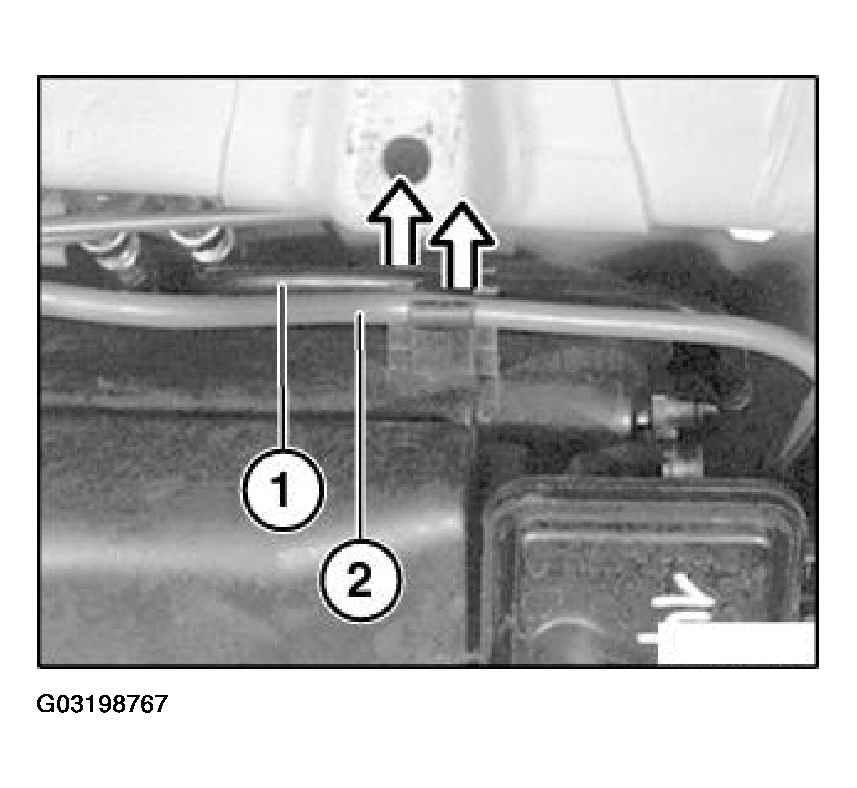

Unclip the tank vent line (1) and the vent line (2) on the front side of the activated carbon canister.

Fig 4: Unclipping Tank Vent Line And Vent Line

Courtesy of BMW OF NORTH AMERICA, INC.
