SI number
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
01 12 96 (103)

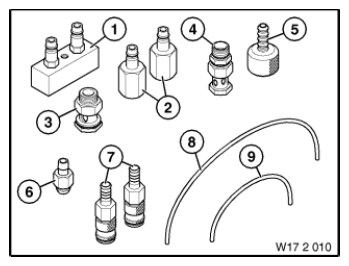

Consisting of:
1 = 0493621
Plate
NOTE:
(Mounting plate) For adapter 17 2 011 - Transmission: A5S/325Z Discontinued, only available via complete tool [cannot be ordered individually]
1 = 0491404
Adapter
NOTE:
For connecting the oil cooler lines to the oil dispenser unit - Transmission: A5S 310Z, A5S 560Z, A5S 325Z Discontinued, only available via complete tool [cannot be ordered individually]
2 = 0491405
Adapter
NOTE:
(Adapter (2 pieces)) For connecting the oil cooler lines to the oil dispenser unit - Transmission: A4S 310R Discontinued, only available via complete tool [cannot be ordered separately]
3 = 0491406
Screw
NOTE:
(Banjo bolt (2 pieces)) Thread M18x1.5 with nut and gasket for connecting the oil cooler lines to the oil dispenser unit - \Transmission: A5S/440Z Discontinued, only available via complete tool [cannot be ordered individually]
4 = 0491407
Screw
NOTE:
(Banjo bolt (2 pieces)) Thread M16x1.5 with nut, gasket and thread piece for connecting the oil cooler lines to the oil dispenser unit - transmission: A5S/300J Discontinued, only available via complete tool [cannot be ordered individually]
5 = 0491408
Connector
NOTE:
(For oil dispenser unit from the company Tecalemit) Discontinued, only available via complete tool [cannot be ordered individually]
6 = 0491409
Connector
NOTE:
(For oil dispenser unit from the company Horn) Discontinued, only available via complete tool [cannot be ordered individually]
7 = 0491410
Adapter
NOTE:
(Clutch) Scope: 2 pieces [Released]
8 = 0491411
Hose
NOTE:
(Hose, long) [released]
9 = 0491412
Hose
NOTE:
(Hose, short) [released]
