SI number

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW 335xi, 2010 BMW 335i, 2009 BMW 335xi, 2009 BMW 335i, and 2008 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

01 07 02 (884)

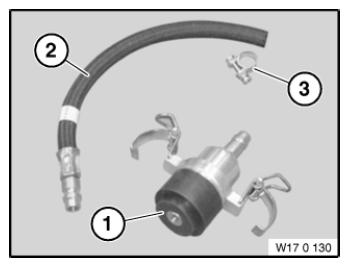

Fig 1: Identifying 170130 Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0494430

Adapter

NOTE: Connection from pump 17 0 101 and hose 17 0 102 to adapter from 17 0 000, Liquidation of existing inventory and then available only as a complete tool set 17 0 130 = 83 30 0 494 429 - as of 29.11.2011 [Not available separately]

2 = 0494431

Hose

NOTE: (Hose with coupling) Connection from pump 17 0 101 to adapter from 17 0 007 Liquidation of existing inventory and then available only as a complete tool set 17 0 130 = 83 30 0 494 429 - as of 29.11.2011 [not available separately]

3 = 0494761

Clamp

NOTE: (hose clip) for hose 17 0 132 Liquidation of existing inventory and after that available only as a complete tool set 17 0 130 = 83 30 0 494 429 - as of 29.11.2011 [not available separately]
