21 21 500 Removing and installing/replacing clutch (GS6-53BZ) S85 USA only: Notes

WARNING: This page is about a different car, the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove transmission, see 23 00 018 REMOVING AND INSTALLING TRANSMISSION (GS6-53BZ) (S85) .
Block flywheel with special tool 11 9 260 COUNTER SUPPORT WITH SCREW CONNECTION .

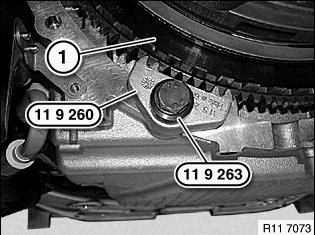

Fig 1: Blocking Flywheel Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove clutch from flywheel.

Tightening torque, see "1AZ" under 21 21 CLUTCH DISC AND DRIVE PLATE .

Installation note:

Clean flywheel and check for wear and damage.

Replace damaged flywheel.

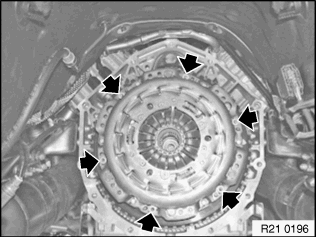

Fig 2: Identifying Clutch To Flywheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Observe the following procedure when installing the removed clutch and clutch discs:

Insert special tool 21 2 180 in clutch.

Press special tool 21 2 180 together at handles (1) as far as it will go and tighten down knurled screws (2).

Adjustment ring of clutch is now secured in its original position (wear position).

Fig 3: Identifying Special Tool (21 2 180)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Locking hooks (1) of special tool 21 2 180 must engage in openings of pressure spring.

Fig 4: Engaging Locking Hooks Of Special Tool (21 2 180) In Openings Of Pressure Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 21 2 170 and tighten down at knurled screw (1).

Screw in spindle (2) to the uppermost pressure point of the diaphragm spring (3).

Fig 5: Fitting Special Tool (21 2 170) Onto Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Clutch disc (1) in clutch must be moveable.

Fig 6: Identifying Clutch Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Center clutch disc (2) with special tool 21-2280 MANDREL on flywheel.

IMPORTANT: Install clutch disc in correct position. Note designation for "engine side" / "transmission side". Handle clutch disc with care. Do not touch surfaces of friction linings.

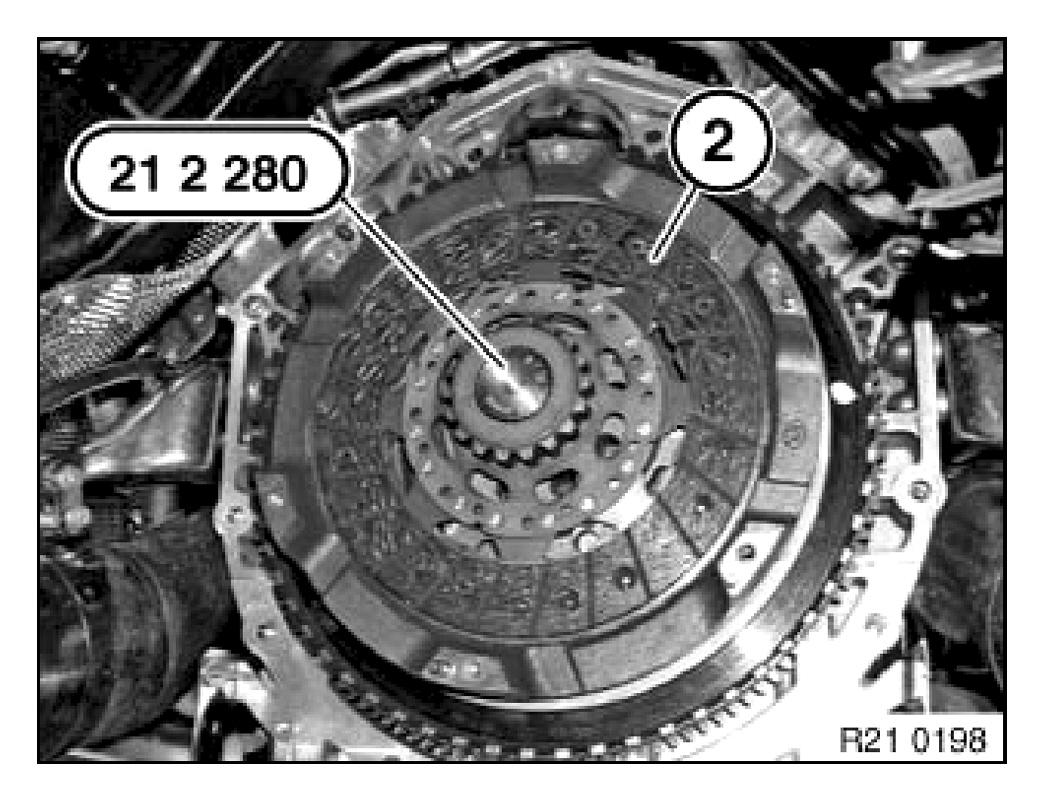

Fig 7: Identifying Clutch Disc And Special Tool 21 2 280

Courtesy of BMW OF NORTH AMERICA, INC.

Fit clutch (1) to flywheel.

Tightening torque, see "1AZ" under 21 21 CLUTCH DISC AND DRIVE PLATE .

NOTE: Clutch (1) must be secured by way of dowel pins (2).

Fig 8: Identifying Clutch And Dowel Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Release spindle (1) until load is fully removed from diaphragm spring (2). Remove special tools 21 2 170 and 21 2 180.

Fig 9: Identifying Spindle And Diaphragm Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw special tool from clutch disc with aid of accompanying screw (1).

Fig 10: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.
